Replacing rear axle support
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Unintentionally applying the parking brake
Injury hazard!
Injury hazard!
- On vehicles with "Remote Engine Start" (SA1CR):
- Starting the engine while working on the braking system is strictly forbidden. When starting the engine via "Remote Engine Start", the parking brake is automatically applied.
- Deactivate the function "Remote Engine Start".
- Open the hood before working on the braking system. This prevents the engine from being started.
WARNING:
Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Observe safety instructions on raising the vehicle using a vehicle hoist.
- For additional information see: 00... RAISE THE VEHICLE USING A VEHICLE LIFT .
CAUTION:
Effects on other persons.
Injury hazard! Risk of damage!
Injury hazard! Risk of damage!
- Make sure that no other persons are in or around the vehicle.
NOTE:
RISK OF DAMAGE
Damage to rear axle differential.
Failure to comply with the oil specifications can result in serious damage to the rear axle differential.
Damage to rear axle differential.
Failure to comply with the oil specifications can result in serious damage to the rear axle differential.
- After completion of repair work, check the transmission oil level in the rear axle differential.
- Use only the approved final drive transmission oil.
NOTE:
TECHNICAL INFORMATION
To remove the rear axle differential, you must lower the rear axle support.
To prevent lowering more than the predefined dimension, you have to replace the installed screws on the rear axle support with repair screws and washers.
To remove the rear axle differential, you must lower the rear axle support.
To prevent lowering more than the predefined dimension, you have to replace the installed screws on the rear axle support with repair screws and washers.
NOTE:
TECHNICAL INFORMATION
Before first working on the DSCi brake (integrated brake), the "DSCi" web-based training must be passed successfully.
The "DSCi" web-based training is started in the Learning Management System (TMSi).
Before first working on the DSCi brake (integrated brake), the "DSCi" web-based training must be passed successfully.
The "DSCi" web-based training is started in the Learning Management System (TMSi).
NOTE:
TECHNICAL INFORMATION
After a brake pad exchange and before pressing the brake pedal: It is imperative to apply the electromechanical parking brake.
If this is not observed, a CC message appears and the brake system switches to the emergency program. The brake booster is no longer active.
After a brake pad exchange and before pressing the brake pedal: It is imperative to apply the electromechanical parking brake.
If this is not observed, a CC message appears and the brake system switches to the emergency program. The brake booster is no longer active.
NOTE:
TECHNICAL INFORMATION
During work on the rear brake, it must be ensured that the button for the electromechanical parking brake cannot be pressed.
During work on the rear brake, it must be ensured that the button for the electromechanical parking brake cannot be pressed.
NOTE:
TECHNICAL INFORMATION
Perform wheel alignment after installation.
Perform wheel alignment after installation.
Preliminary work
- Refer to NOTING THE INFORMATION ON THE CARBON CERAMIC BRAKE .
- Refer to REMOVING THE REAR LEFT AND RIGHT WHEELS .
- Refer to RELEASING THE LEFT AND RIGHT OUTPUT SHAFT FROM THE WHEEL BEARING .
- Refer to RELEASING CABLE FROM THE REAR AXLE SUPPORT .
- Refer to REMOVING THE CONNECTING SUPPORT FROM THE TUNNEL .
- Refer to REMOVING EXHAUST SYSTEM .
- Refer to REMOVING TANK COVER ON LEFT AND RIGHT .
- Refer to REMOVING THE LEFT AND RIGHT THRUST FIELDS AND THE TORSION STRUT .
- Refer to REMOVING THE REAR HEAT SHIELD .
- Refer to RELEASING THE PROP SHAFT FROM THE REAR AXLE DIFFERENTIAL .
- Refer to TENSIONING THE COIL SPRING LEFT AND RIGHT .
- Refer to REMOVING THE LEFT AND RIGHT CAMBER CONTROL ARM .
- Refer to REMOVING THE REAR LEFT AND RIGHT BRAKE PADS .
- Refer to REMOVING THE REAR LEFT AND RIGHT BRAKE DISC .
- Refer to RELEASING THE LEFT AND RIGHT WHEEL SPEED SENSOR FROM THE WHEEL CARRIER .
- Refer to REMOVING THE WHEEL CARRIER ON THE LEFT AND RIGHT .
- Refer to RELEASING THE LEFT AND RIGHT OUTPUT SHAFTS FROM THE REAR AXLE DIFFERENTIAL .
- Refer to REMOVING LEFT AND RIGHT OUTPUT SHAFT :
- Refer to PREPARING THE SPECIAL TOOL .
- Refer to LOWERING REAR AXLE SUPPORT .
- Refer to REMOVING THE HEAT SHIELD .
- Refer to PREPARING THE SPECIAL TOOL .
- Refer to REMOVING REAR AXLE DIFFERENTIAL .
- Refer to PREPARING THE SPECIAL TOOL .
- Refer to REMOVING REAR AXLE SUPPORT .
NOTE:
TECHNICAL INFORMATION
Incorrect assembly is possible. Ensure correct installation position.
Incorrect assembly is possible. Ensure correct installation position.
NOTE:
TECHNICAL INFORMATION
Subsequently, the screw connections for the axle guides are tightened in the NORMAL POSITION with the torque wrench.
Subsequently, the screw connections for the axle guides are tightened in the NORMAL POSITION with the torque wrench.
- Unclip the holder (1) .
- Remove ground strap (2) .

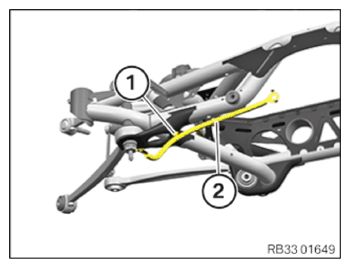

- Loosen screw (1) .
- Remove the ride height sensor (2) .
- Loosen screws (1) .
- Remove anti-roll bar (2) with the retainers.
NOTE:
Perform the steps on the left and right side.

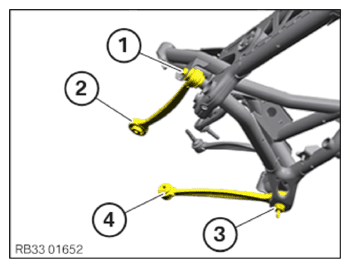

- Loosen screw (1) .
- Remove the lower rear wishbone (2) .
- Release the screw (3) .
- Remove the lower front control arm (4) .
NOTE:
Perform the steps on the left and right side.

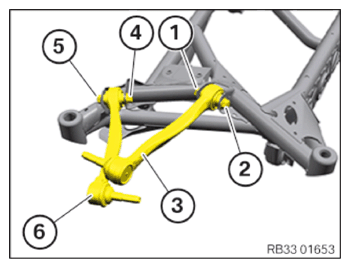

- Loosen screw (1) . In doing so, counter support at the nut (2) .
- Remove the upper rear control arm (3) .
- Loosen screw (4) . In doing so, counter support at the nut (5) .
- Remove upper front control arm (6) .
NOTE:
TECHNICAL INFORMATION
Conduct the following operation with the assistance of a second person.
Conduct the following operation with the assistance of a second person.
- Replace the rear axle support.
Parts: Rear axle carrier
- Position the rear axle support on special tools 0 495 821 (31 5 255) and 0 495 819 (31 5 253) .
NOTE:
Perform the steps on the left and right side.
- Replace screw (1)
and (4)
and nut (2)
and (5)
.
Parts: Bolts, nuts
- Position the upper front control arm (6) .
- Insert the screw (4) and thread the nut (5) .
- Tighten screw (4) by hand. In doing so, counter support at the nut (5) .
- Position the upper rear control arm (3) .
- Insert the screw (1) and thread the nut (2) .
- Tighten screw (1) by hand. In doing so, counter support at the nut (2) .
NOTE:
Perform the steps on the left and right side.
- Replace screw (1)
and (3)
.
Parts: Screws
- Position the lower front control arm (4) .
- Tighten screw (3) by hand.
- Position the lower rear wishbone (2) .
- Tighten screw (1) by hand.

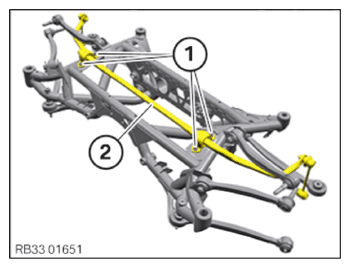

- Position the anti-roll bar (2) with the retainers.
- Replace screws (1)
.
Parts: Screws
- Tighten the screws (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Rear anti-roll bar retainer on rear axle support | ||
| M8 Replace screws. | Tightening Torque | 28 Nm |

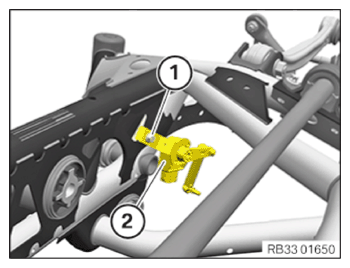

- Position the ride height sensor (2) .
- Tighten down screw (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Standard screw connection M6 | ||
| M6 | Tightening torque | 8 Nm |
- Position the ground strap (2) .
- Clip in the holder (1) .
Follow-up work
- Refer to INSTALLING THE REAR AXLE SUPPORT .
- Refer to REPLACING THE LEFT AND RIGHT RADIAL SHAFT SEAL .
- Refer to INSTALLING REAR AXLE DIFFERENTIAL .
- Refer to INSTALLING THE HEAT SHIELD .
- Refer to PREPARING THE SPECIAL TOOL .
- Refer to LIFTING REAR AXLE SUPPORT .
- Refer to INSTALLING THE OUTPUT SHAFT ON LEFT AND RIGHT .
- Refer to FASTENING THE RIGHT AND LEFT OUTPUT SHAFTS ON THE REAR AXLE DIFFERENTIAL .
- Refer to INSTALLING THE WHEEL CARRIER ON THE LEFT AND RIGHT .
- Refer to FASTENING THE LEFT AND RIGHT WHEEL SPEED SENSOR TO THE WHEEL CARRIER .
- Refer to INSTALLING THE REAR LEFT AND RIGHT BRAKE DISC .
- Refer to INSTALLING THE RIGHT REAR BRAKE PADS .
- Refer to INSTALLING THE LEFT AND RIGHT CAMBER CONTROL ARM .
- Refer to LOOSENING THE LEFT AND RIGHT COIL SPRINGS .
- Refer to ADDING REAR DIFFERENTIAL FLUID .
- Refer to SECURING THE PROPELLER SHAFT ON THE REAR AXLE DIFFERENTIAL .
- Refer to INSTALLING THE REAR HEAT SHIELD .
- Refer to INSTALLING THE LEFT AND RIGHT THRUST FIELDS AND THE TORSION STRUT .
- Refer to INSTALLING TANK COVER ON LEFT AND RIGHT .
- Refer to INSTALLING EXHAUST SYSTEM .
- Refer to INSTALLING THE CONNECTING SUPPORTS ON THE TUNNEL .
- Refer to SECURING THE CABLE TO THE REAR AXLE SUPPORT .
- Refer to FASTENING THE RIGHT AND LEFT OUTPUT SHAFTS ONTO THE WHEEL BEARING .
- Refer to INSTALLING REAR WHEEL ON THE LEFT AND RIGHT .
- Refer to PLACING THE BRAKE PADS ON THE BRAKE DISK/PUTTING THEM INTO OPERATION .
- Refer to MEASURING THE RIDE HEIGHT OF REAR AXLE AND ADJUSTING THE NORMAL POSITION .
- Refer to TIGHTENING THE SCREW CONNECTION OF THE TOP LEFT AND RIGHT FRONT CONTROL ARM TO THE REAR AXLE SUPPORT .
- Refer to TIGHTENING THE SCREW CONNECTION OF THE TOP REAR LEFT AND RIGHT CONTROL ARM TO THE REAR AXLE SUPPORT .
- Refer to TIGHTENING THE SCREW CONNECTION OF THE BOTTOM LEFT AND RIGHT FRONT CONTROL ARM TO THE WHEEL CARRIER .
- Refer to TIGHTENING THE SCREW CONNECTION OF THE BOTTOM REAR LEFT AND RIGHT CONTROL ARM TO THE REAR AXLE SUPPORT .
- Refer to TIGHTENING THE SCREW CONNECTION OF THE LEFT AND RIGHT CAMBER LINK TO THE SHOCK ABSORBER .
- Refer to TIGHTENING THE SCREW CONNECTION OF THE LEFT AND RIGHT CAMBER LINK ON THE REAR AXLE SUPPORT .
- Refer to PERFORMING CHASSIS ALIGNMENT CHECK .
- Refer to TIGHTENING THE SCREW CONNECTION OF THE LEFT AND RIGHT CAMBER LINK ON THE WHEEL CARRIER .
- Refer to TIGHTENING THE SCREW CONNECTION OF THE BOTTOM REAR LEFT AND RIGHT CONTROL ARM TO THE WHEEL CARRIER .
