Preparing the special tool
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
Conduct the following operation with the assistance of a second person.
Conduct the following operation with the assistance of a second person.
NOTE:
TECHNICAL INFORMATION
In a profile rail pair, two profile rails are connected to one another by gearing.
In a profile rail pair, two profile rails are connected to one another by gearing.

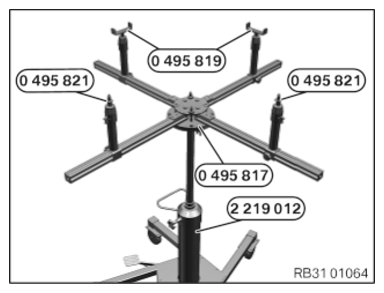

- Attach the special tool 0 495 817 (31 5 251) on the special tool 2 219 012 .
- Insert special tools 0 495 821 (31 5 255) in the telescopic supports of a profile rail pair.
- Insert special tools 0 495 819 (31 5 253) in telescopic supports of the other profile rail pair.
NOTE:
TECHNICAL INFORMATION
Conduct the following operation with the assistance of a second person.
Conduct the following operation with the assistance of a second person.

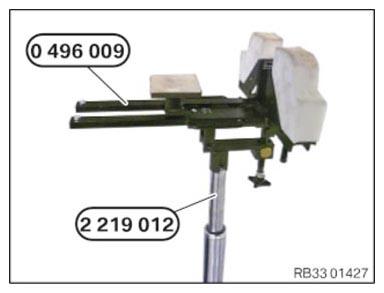

- Attach the special tool 0 496 009 (33 5 200) on the special tool 2 219 012 .
