Remove exhaust system
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Hot surfaces.
Risk of burning!
Risk of burning!
- Perform all work only on components that have cooled down.
NOTE:
TECHNICAL INFORMATION
Mount the exhaust system in a de-energized state, following the tightening sequence from the rear silencer towards the exhaust manifold.
Mount the exhaust system in a de-energized state, following the tightening sequence from the rear silencer towards the exhaust manifold.
Preliminary work
WARNING:
Hot surfaces.
Risk of burning!
Risk of burning!
- Perform all work only on components that have cooled down.
CAUTION:
Component with heavy weight.
Injury hazard!
Injury hazard!
- Note component's center of gravity.
- Support component using a jack.
- Secure component against falling off the jack.
CAUTION:
Heavy component.
Heavy components can lead to injury or damage.
Heavy components can lead to injury or damage.
- Remove and install heavy components with the aid of another person/other persons.

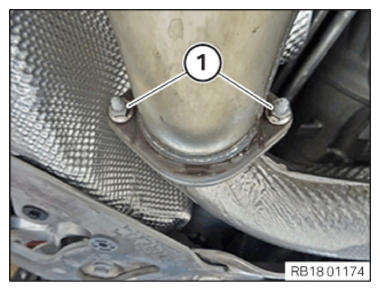

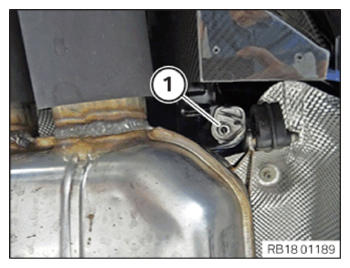

- Release nuts (1).

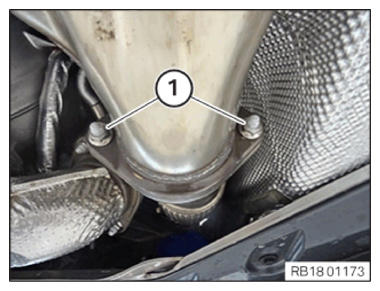

- Release nuts (1).

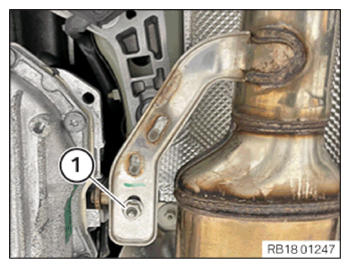

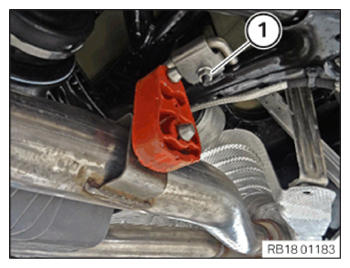

- Loosen screw (1).

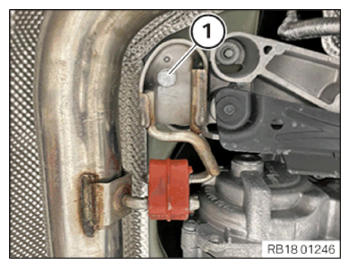

- Version B:

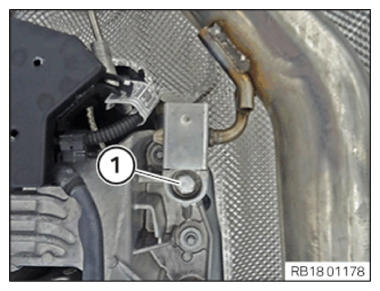

Loosen screw (1).

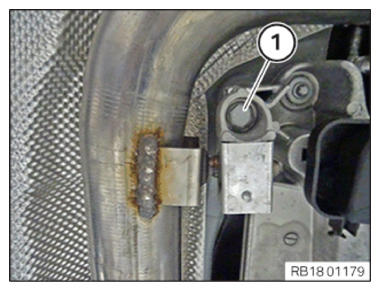

- Version A:
Loosen screw (1).

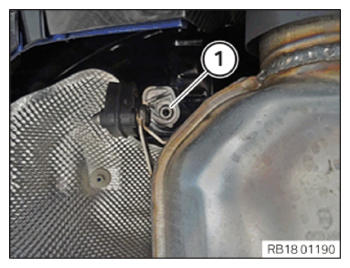

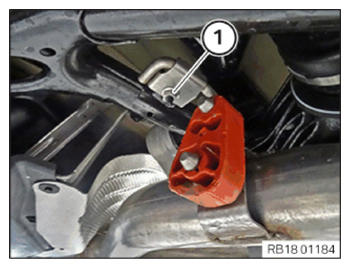

- Release nut (1).
NOTE:
The following step(s) must be performed if the listed component(s) is/are installed.

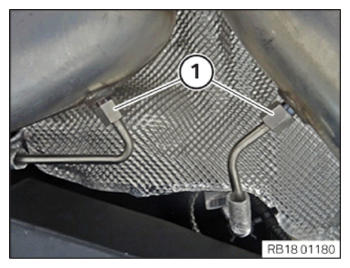

- Disconnect the cables (1).
- Release nut (1).
- Release nut (1).

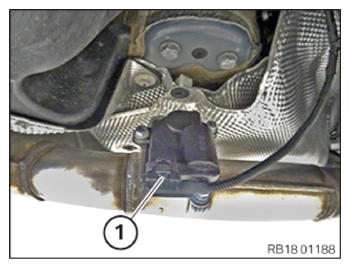

- Unlock plug connection (1) and disconnect.

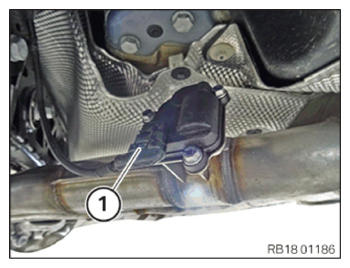

- Unlock plug connection (1) and disconnect.
- Release nut (1).
- Release nut (1).

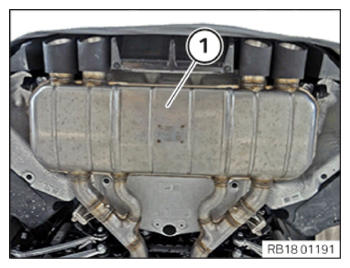

- With the help of a support person, lower, guide out, and remove the exhaust system (1).
