Installing the wheel carrier on the left and right
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Perform the steps on the left and right side.
Install wheel carrier

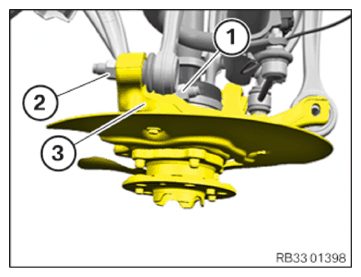

- Feed in and position the wheel carrier (3) at the wishbones.
- Replace the nuts (1)
and (2)
.
Parts: Nut
- Hand-tighten the nuts (1) and (2) . If necessary, counter support at the Torx socket.
- Tighten nuts (1)
and (2)
. If necessary, counter support at the Torx socket.TIGHTENING TORQUE SPECIFICATIONS
Upper wishbone at front/rear to wheel carrier M14
Replace nut.Tightening torque 165 Nm - Replace the screw (2)
.
Parts: Screw

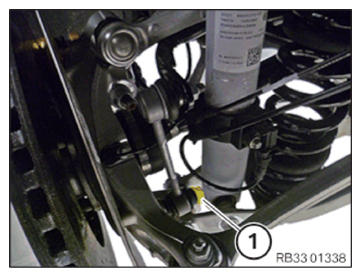

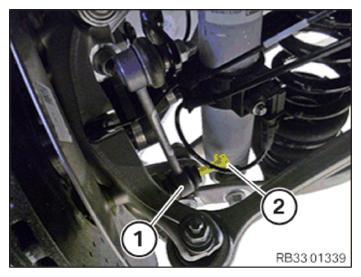

- Insert the screw (2)
and position the anti-roll bar link (1)
on the wheel carrier.
- Tighten down screw (1)
.TIGHTENING TORQUE SPECIFICATIONS
Rear anti-roll bar link to wheel carrier M10
Replace screw.Tightening torque 56 Nm NOTE: TECHNICAL INFORMATION
The screw connection is tightened later in the NORMAL POSITION with the torque wrench. - Replace the screw (1)
.
Parts: Screw

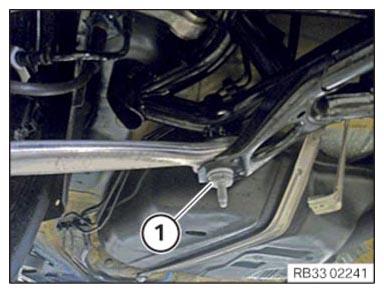

- Tighten screw (1)
by hand.
- Tighten down screw (1)
.TIGHTENING TORQUE SPECIFICATIONS
Front lower wishbone to rear axle support M12

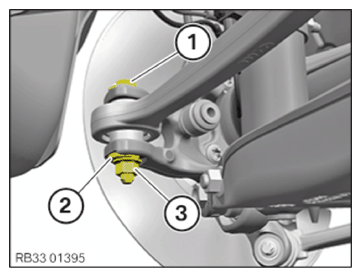

Replace screw.Tightening torque 100 Nm NOTE: In order to tighten the screw connection with the torque wrench after adjustment work, the direction of insertion of the eccentric screw must be reversed. - Replace the eccentric screw (1)
, the eccentric washer (2)
and the nut (3)
.
Parts: Eccentric screw, eccentric washer, nut
- The eccentric screw (1) must be inserted from the top.
- Position eccentric washer (2) .
- Hand-tighten the nut (3)
. Turn the eccentric to the mark.
The threaded connection is tightened with the torque wrench only after the wheel alignment.
- Release the special tool 2 413 317 from the output shaft (1) and remove it.
