Install exhaust system

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Component with heavy weight.
Injury hazard!

Note component's center of gravity.
Support component using a jack.
Secure component against falling off the jack.

CAUTION: Heavy component.
Heavy components can lead to injury or damage.

Remove and install heavy components with the aid of another person/other persons.

NOTE: TECHNICAL INFORMATION
Check the exhaust system for tightness after installation.

NOTE: TECHNICAL INFORMATION
Mount the exhaust system in a de-energized state, following the tightening sequence from the rear silencer towards the exhaust manifold.

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

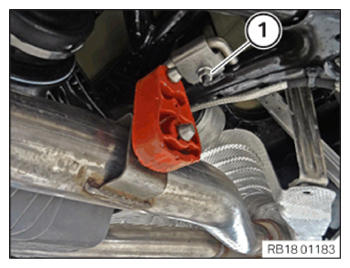

Check all rubber mounts (1) of the exhaust system for damage and replace, if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

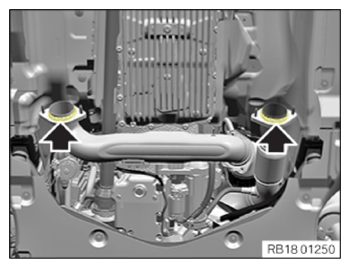

Replace seals (arrows).

Parts: Seals

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
Conduct the following operation with the assistance of a second person.

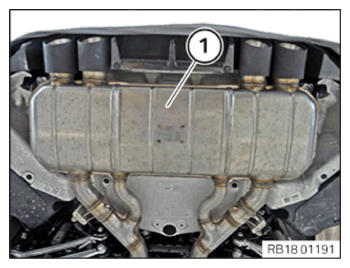

Insert and install the exhaust system (1) with the help of a support person.

Courtesy of BMW OF NORTH AMERICA, INC.

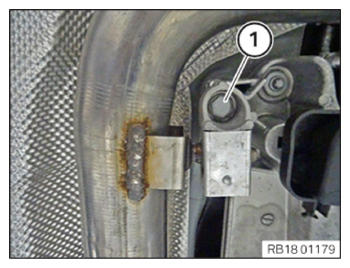

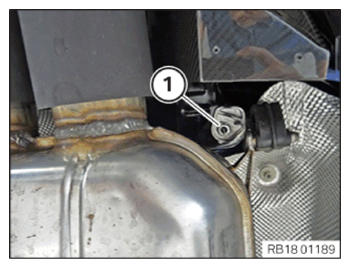

Tighten nut (1).

TIGHTENING TORQUE SPECIFICATIONS

Rear silencer to bumper bracket
M8	tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

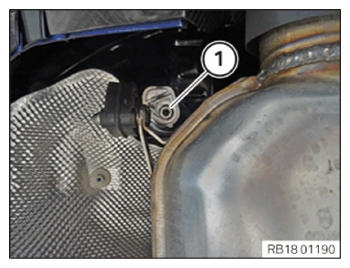

Tighten nut (1).

TIGHTENING TORQUE SPECIFICATIONS

Rear silencer to bumper bracket
M8	tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

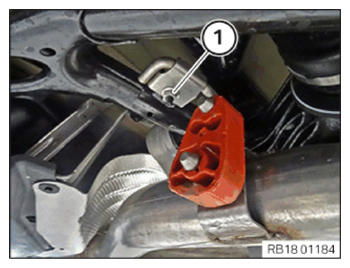

Tighten nut (1).

TIGHTENING TORQUE SPECIFICATIONS

Exhaust system to rear axle carrier
M8 Nut	tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

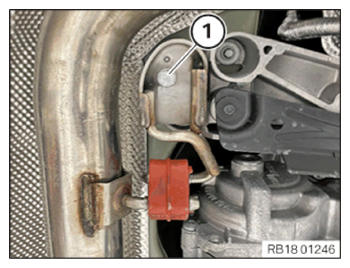

Tighten nut (1).

TIGHTENING TORQUE SPECIFICATIONS

Exhaust system to rear axle carrier
M8 Nut	tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Version A:

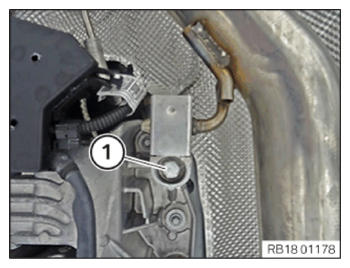

Replace the screw (1).

Parts: Screw Tighten down screw (1).

TIGHTENING TORQUE SPECIFICATIONS

Exhaust system member on the transmission cross
M8x25 Replace screw.	Tightening Torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

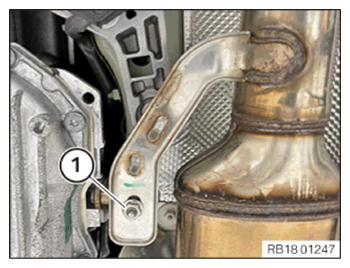

Replace the screw (1).
Parts: Screw
Tighten down screw (1).

TIGHTENING TORQUE SPECIFICATIONS

Exhaust system on the transmission cross member
M8x25 Replace screw.	Tightening Torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Version B:

Replace the screw (1).

Parts: Screw

Tighten down screw (1).

TIGHTENING TORQUE SPECIFICATIONS

Exhaust system on the transmission cross member
M8x25 Replace screw.	Tightening Torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

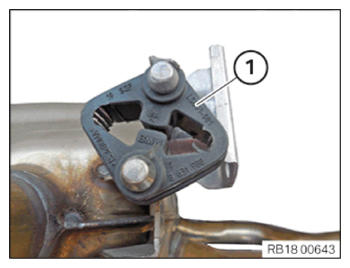

Tighten nut (1).

TIGHTENING TORQUE SPECIFICATIONS

Exhaust system to holder
Nut M8	Tightening torque	19 Nm

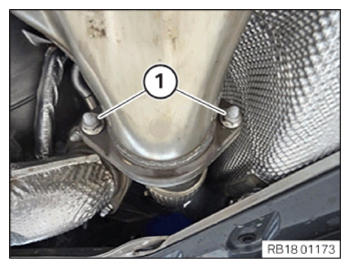

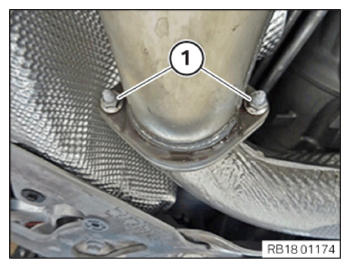

Tighten nuts (1).

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUE SPECIFICATIONS

Exhaust system to catalytic converters/intermediate pipe
M8 Replace nut.	Tightening torque	5 Nm
	Tightening torque	24 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten nuts (1).

TIGHTENING TORQUE SPECIFICATIONS

Exhaust system to catalytic converters/intermediate pipe
M8 Replace nut.	Tightening torque	5 Nm
	Tightening torque	24 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The following step(s) must be performed if the listed component(s) is/are installed.

If necessary, coat the thread of the union nut with assembly paste.

CONSUMABLE DESCRIPTION

High-temperature assembly paste

10 g, Tube

83230309003

Courtesy of BMW OF NORTH AMERICA, INC.

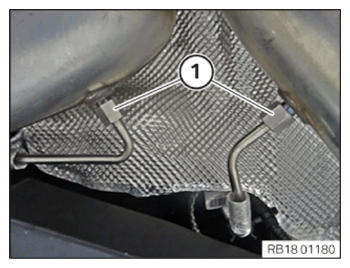

Tighten union nuts (1).

TIGHTENING TORQUE SPECIFICATIONS

Pressure line union nut
Pressure line union nut	Tightening torque	40 Nm

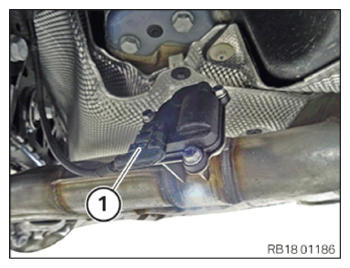

Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

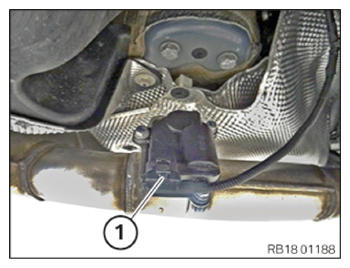

Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE CONNECTING SUPPORTS ON THE TUNNEL .
