Installing the rear heat shield
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

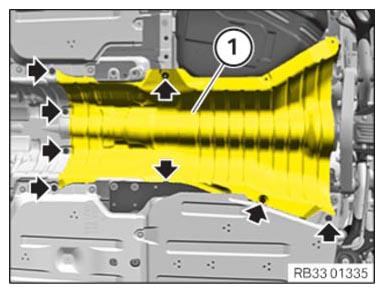

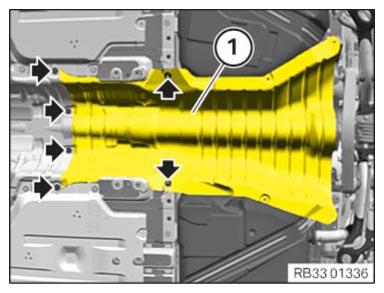

- Guide in and position the rear heat shield (1) .
- Tighten nuts and screws (arrows).
TIGHTENING TORQUE SPECIFICATIONS
| Heat shield to underbody | ||
| Screws and nuts | Tightening torque | 3 Nm |
