Installing the left and right camber control arm

Installing the camber control arm

• Replace the eccentric screw (1)  and the screw (5)  .

  Parts:  Eccentric screw, screw

• Position the camber control arm (2)  on the wheel carrier.
• Insert the eccentric screw (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

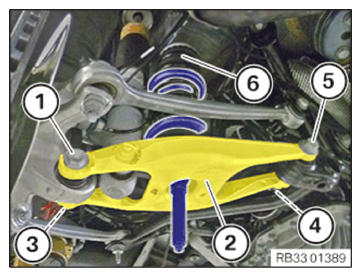

• Insert tensioned coil spring (6)  and position the camber control arm (2)  on the rear axle support.
• Insert screw (5)  .
• Replace the eccentric washer and the nuts (3)  and (4)  .

  Parts:  Eccentric washer, nuts

• Tighten the nut (3)  hand-tight. Turn the eccentric screw (1)  with the eccentric to the mark while doing so.
• Hand-tighten the screw (5)  . In doing so, counter support at the nut (4)  .

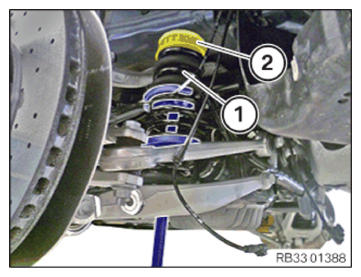

• Feed in the top spring pad (2)  at the coil spring (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

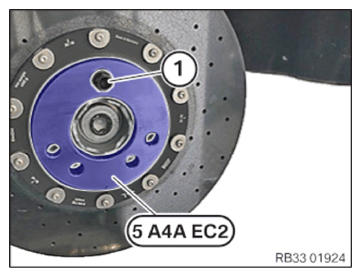

• Position the special tool 5 A4A EC2  for CFRP brake disks.
• Hand-tighten the lug bolt (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

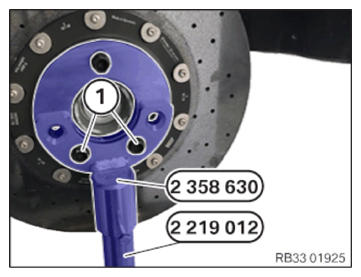

• Position special tool 2 358 630 .
• Turn lug bolts (1)  until hand-tight.
• Slightly lift the wheel carrier with the special tool  2 219 012  . Do not press against the spring force of the coil spring.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: TECHNICAL INFORMATION
  The screw connection is tightened later in the NORMAL POSITION  with the torque wrench.

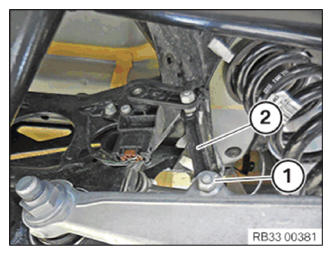

• Replace the nut (1)  and the screw (2)  .

  Parts:  Nut, bolt

• Insert the screw (2)  and hand-tighten the nut (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Empty special tool 2 219 012 and set it aside.
• Release the lug bolts (1)  .
• Remove special tool 2 358 630 .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Release the lug bolts (1)  for CFRP brake disks.
• Remove special tool 5 A4A EC2  .

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: The following step(s) must be performed if the listed component(s) is/are installed.

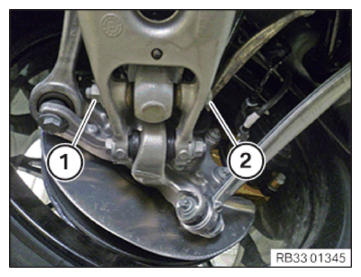

• Position the attachment rod (2)  on the camber control arm.
• Replace nut (1)  .

  Parts:  Nut

• Tighten nut (1)  .

Courtesy of BMW OF NORTH AMERICA, INC.
