Remove left and right output shaft
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Perform the steps on the left and right side.
Removing the output shaft
NOTE:
TECHNICAL INFORMATION
It is mandatory to replace the radial shaft seal in the rear axle differential each time after having removed the output shaft.
It is mandatory to replace the radial shaft seal in the rear axle differential each time after having removed the output shaft.
NOTE:
TECHNICAL INFORMATION
Secure component against falling.
Secure component against falling.

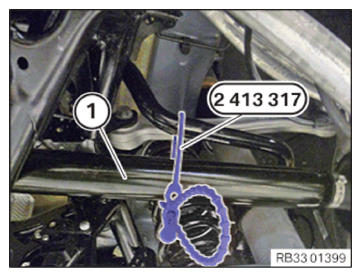

- Release the special tool 2 413 317 .
- Feed out the remove the output shaft (1) .
