Installing the rear axle support
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

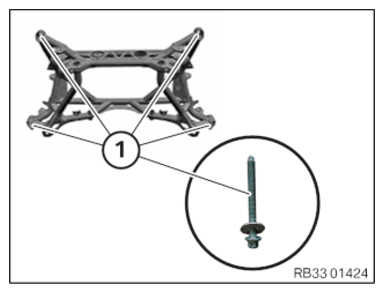

- Get the repair screws (1)
and washers ready.
Parts: Repair screws, washers

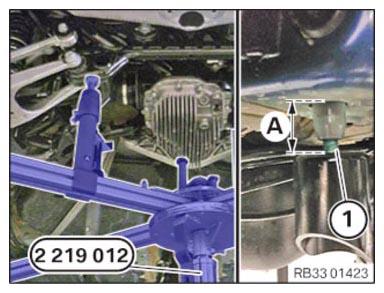

CONSUMABLE SPECIFICATIONRepair screws (4x) with washers (4x) M12x1.5x115 07 14 7 426 660 37x2.5 31 33 6 776 760 - Lift the rear axle support to the dimension (A)
using the special tool 2 219 012
.
Dimension (A) = 3.5 cm
- It is (1) mandatory to screw in repair screws together with the washers and to apply them hand-tight. Make sure that the rear axle support remains lowered to the dimension (A) .
- Lower the special tool 0 495 817 (31 5 251) with the special tool 2 219 012 and place it to the side.
