Installing the heat shield
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

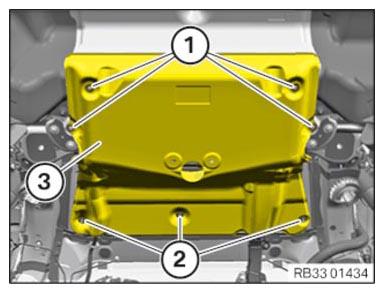

To provide a better overview: Schematic diagram with partially hidden components.
- Guide in and position heat shield (3)
.
- Tighten screws (1)
and nuts (2)
.
TIGHTENING TORQUE SPECIFICATIONS
| Heat shield to underbody |
| Screws and nuts |
Tightening torque |
3 Nm |
 Courtesy of BMW OF NORTH AMERICA, INC.
|
