Releasing the prop shaft from the rear axle differential

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: RISK OF DAMAGE
Damage to prop shaft during removal.
Non-observance of the removal guidelines for the prop shaft on the rear axle differential may cause severe damage.

Loosen the recessed nut against the direction of travel in clockwise direction. The prop shaft must be loosened on the recessed nut only and exclusively in the direction of rotation otherwise the anti-twist lock of the bi-hexagonal flange nut is damaged.
In the event of a damaged anti-twist lock on the bi-hexagonal flange nut: Replace the rear axle differential.

Slacken the screws (1) on the central mount.

Courtesy of BMW OF NORTH AMERICA, INC.
Use special tool 5 A4A EB5 and a suitable tool (2) to counter support the prop shaft (1) at the central universal joint.

Courtesy of BMW OF NORTH AMERICA, INC.
NOTE:
RISK OF DAMAGE
Damage to rear axle differential.
Non-observance of the removal and installation guidelines may cause severe damage to the rear axle differential.
- Do not use the double hexagon head flange nut as counter support.
Courtesy of BMW OF NORTH AMERICA, INC.

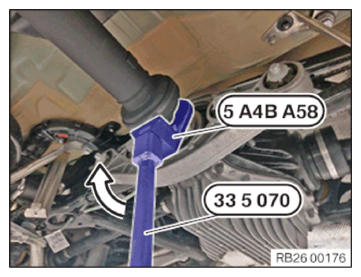

Release the recessed nut in the arrow direction using special tools 5 A4B A58 and 0 495 554 (33 5 070) . While doing so, counter support at the central universal joint.

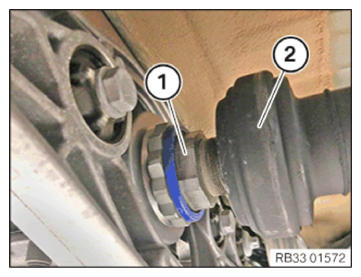

Ensure that the recessed nut (1) is released from the prop shaft (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.
NOTE:
RISK OF DAMAGE
Damage to the bellows on the prop shaft.
Non-use of the special tool may lead to damage to the bellows on the prop shaft.
- The special tool must be used when removing the prop shaft, otherwise the bellows may be damaged with the mounting lever.
Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
Secure component against falling.

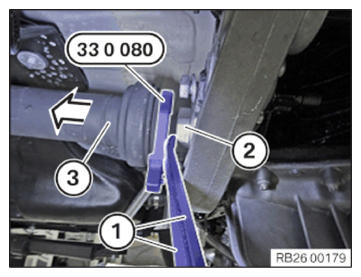

Position the mounting lever (1) and the special tool 0 496 959 (33 0 080) between the prop shaft (3) and the recessed nut (2) with help from a second person.
Push the prop shaft (3) out of the rear axle differential with the mounting lever (1) and the special tool 0 496 959 (33 0 080) .
Tie up the prop shaft (1) with the special tool 2 413 317 .

Courtesy of BMW OF NORTH AMERICA, INC.
Position the central mount and screw in the screws (1) by a few turns.

Courtesy of BMW OF NORTH AMERICA, INC.
