Removing the wheel carrier on the left and right

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Perform the steps on the left and right side.

Removing the wheel carrier

Tie up output shaft (1) using special tool 2 413 317 .

Courtesy of BMW OF NORTH AMERICA, INC.

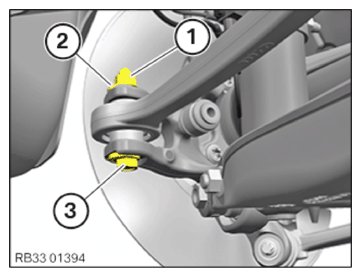

Mark the position of the eccentric of eccentric screw (3) in relation to the wheel carrier in order to simplify the subsequent adjustment of the rear axle.
Release nut (1) .
Remove the eccentric washer (2) .
Pull out eccentric screw (3) .

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screw (1) .

Courtesy of BMW OF NORTH AMERICA, INC.
Pull anti-roll bar link (1) a little to the rear and pull out screw (2) .

Courtesy of BMW OF NORTH AMERICA, INC.
Release the screw (1) .

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
Secure component against falling.
Release the nuts (1) and (2) . If necessary, counter support at the Torx socket.
Guide out and remove wheel carrier (3) from the wishbones.

Courtesy of BMW OF NORTH AMERICA, INC.
