Installing rear axle differential
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

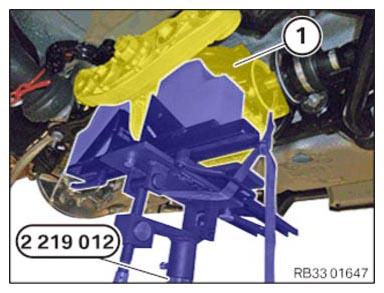

- Use special tool 2 219 012
to lift rear axle differential (1)
and position it on the rear axle support.
- Replace screws (1)
.
Parts: Screws
- Screw in the screws (1)
by a few turns.

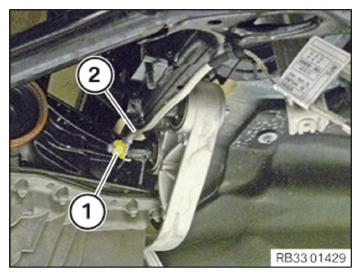

- Replace the nut (1)
and the screw (2)
.
Parts: Nut, bolt

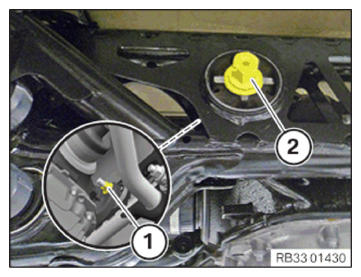

- Insert screw (2) into the rear axle support.
- Tighten nut (1)
.TIGHTENING TORQUE SPECIFICATIONS
Rear differential to rear axle carrier, rear M14

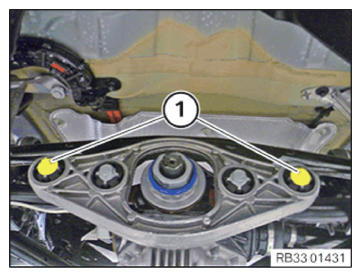

Replace screw and nut.Tightening torque 165 Nm Angle of rotation 90° - Tighten the screws (1)
.TIGHTENING TORQUE SPECIFICATIONS
Adapter of rear axle differential to rear axle support M12

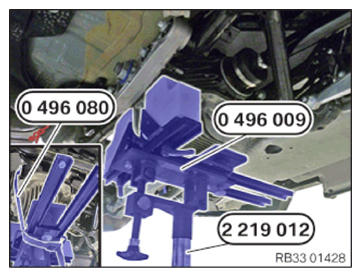

Replace screw.Tightening torque 100 Nm Angle of rotation 90° - Release special tool 0 496 080 (33 5 206) from special tool 0 496 009 (33 5 200) .
- Lower special tool 0 496 009 (33 5 200)
using special tool 2 219 012
and keep it aside.
- Position ground cable (2) on the rear axle differential.
- Tighten nut (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Ground strap on rear axle differential | ||
| M12 | Tightening torque | 19 Nm |
