Installing the left and right thrust fields and the torsion strut
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

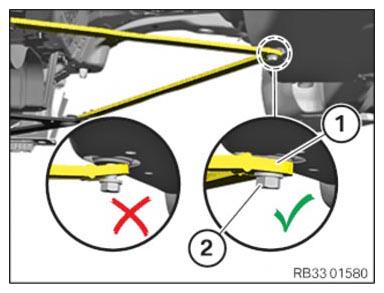

- Position the torsion strut (1) correctly.
- Replace the screw (2)
.
Parts: Screw
- Screw in screw (2)
several turns.NOTE: Perform the steps on the left and right side.
- Position the thrust field (4) .
- Replace screws (1)
and (3)
.
Parts: Screws
- Screw in the screws (1) and (3) for a few rotations.
- Tighten screws (arrows).TIGHTENING TORQUE SPECIFICATIONS
Thrust field to body M8 Tightening torque 28 Nm - Tighten the screws (3)
.TIGHTENING TORQUE SPECIFICATIONS
Thrust field to outer body M10
Replace screw.Tightening torque 56 Nm Angle of rotation 90° - Replace nut (2)
.
Parts: Nut
- Tighten nut (2)
.TIGHTENING TORQUE SPECIFICATIONS
Thrust field to rear axle support M10
Replace nut.Tightening torque 56 Nm Angle of rotation 90° - Tighten the screws (1)
.TIGHTENING TORQUE SPECIFICATIONS
Torsion strut to thrust field M8x27
Replace screw.Tightening torque 28 Nm NOTE: Perform the steps on the left and right side. - Replace screws (1)
.
Parts: Screws
- Tighten the screws (1)
.TIGHTENING TORQUE SPECIFICATIONS
Thrust field to door sill M12
Replace screw.Tightening torque 100 Nm Angle of rotation 90° NOTE: Perform the steps on the left and right side. - Tighten the nuts (1)
and screws (2)
.TIGHTENING TORQUE SPECIFICATIONS
Undershield screw Tightening torque 2.6 Nm Plastic nut Tightening torque 2.6 Nm - Tighten the screw (1)

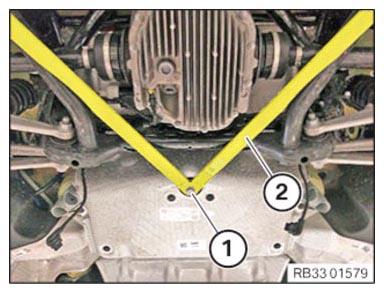

on the torsion strut (2)
.TIGHTENING TORQUE SPECIFICATIONS
Torsion strut to mounting block M12x35
Replace screw.Tightening torque 100 Nm Angle of rotation 90° NOTE: Only perform the operation on the right side. - Position ground strap (2) on the right thrust field (3) .
- Tighten down screw (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Ground strap to thrust field | ||
| M6 | Tightening torque | 6.4 Nm |
