Tightening the screw connection of the bottom rear left and right control arm to the rear axle support
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Perform the steps on the left and right side.
Tightening the screw connection of the bottom rear control arm to the rear axle support

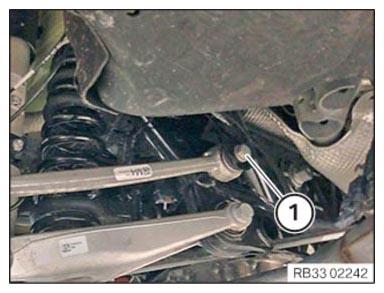

- Slacken screw (1) by a turn and tighten it.
TIGHTENING TORQUE SPECIFICATIONS
| Lower rear wishbone to rear axle support | ||
| M12 Replace screw. |
Tightening torque | 100 Nm |
