Section 241 (General Orphan Data (1 Of 2))
>>
Remove the connecting support from the tunnel
Remove the connecting support from the tunnel
WARNING:
This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

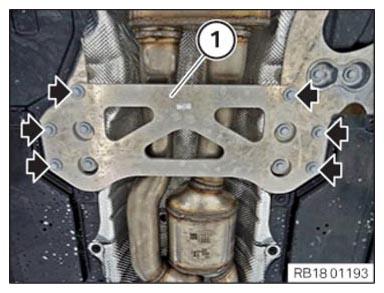

Remove screws (arrows).
Remove connecting support
(1)
.
Courtesy of BMW OF NORTH AMERICA, INC.
