Release cable from the rear axle support
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Perform the steps on the right and left side.

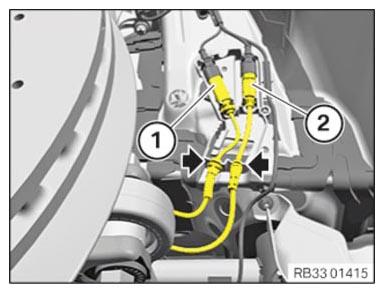

- Unlock and disconnect the plug connections (1) and (2) .
- Remove the cable from the holders (arrows).

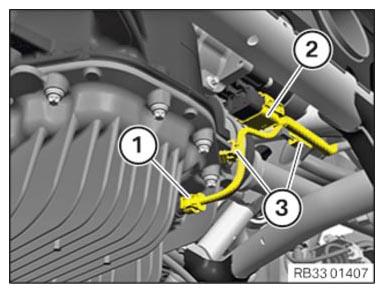

- Unlock and disconnect the plug connections (1) and (2) .
- Release the cable with holders (3)
.

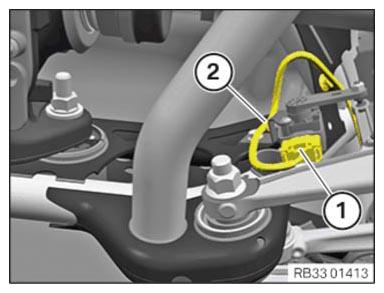

- Unlock plug connection (1) and disconnect.
- Detach the cable with the holder (2)
from the rear axle support.NOTE: Perform the steps on the right and left side.

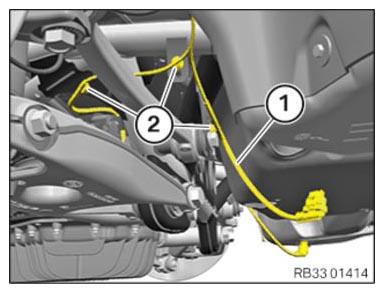

- Detach the cable (1) with the holders (2) from the rear axle support.
- Unlock and disconnect the plug connections (1) and (2) .
- Release the cable with holders (3)
.
- Unlock plug connection (1) and disconnect.
- Detach the cable with the holder (2)
from the rear axle support.NOTE: Perform the steps on the right and left side.
- Detach the cable (1) with the holders (2) from the rear axle support.
