Removing rear axle support
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
In a profile rail pair, two profile rails are connected to one another by gearing.
In a profile rail pair, two profile rails are connected to one another by gearing.
NOTE:
TECHNICAL INFORMATION
The center of gravity of the axle support must be in the center above the special tool.
The center of gravity of the axle support must be in the center above the special tool.

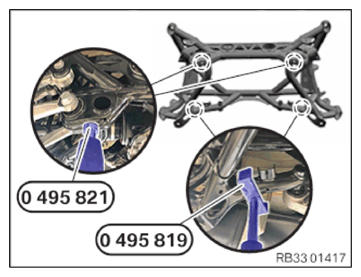

- Align special tools 0 495 821 (31 5 255) and 0 495 819 (31 5 253) with the rear axle support.

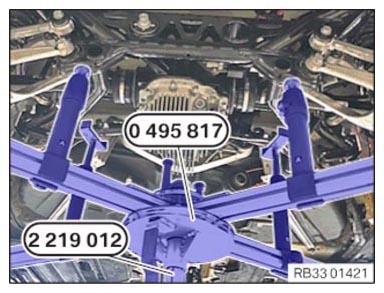

- Raise special tool 0 495 817 (31 5 251)
using special tool 2 219 012
and support the rear axle support.
- Unscrew the repair screws (1)
.

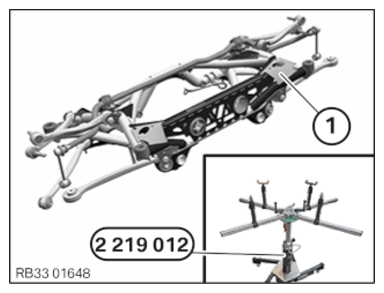

- Lower and remove rear axle support (1) using special tool 2 219 012 .
