Tightening the screw connection of the left and right camber link on the rear axle support
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Perform the steps on the left and right side.
Tightening the screw connection of the camber link to the rear axle support

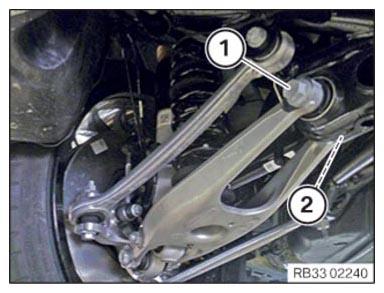

- Slacken screw (1) by a turn and tighten it. In doing so, counter support at the nut (2) .
TIGHTENING TORQUE SPECIFICATIONS
| Camber control arm to rear axle support | ||
| M14 Replace screw and nut. Tighten in NORMAL POSITION . |
Tightening via screw Tightening torque |
100 Nm |
| Angle of rotation | 90° | |
