Overview Of System Components For Overall Network (GVN) - GF00.19-P-9997FG
Model 213
up to model year 2021

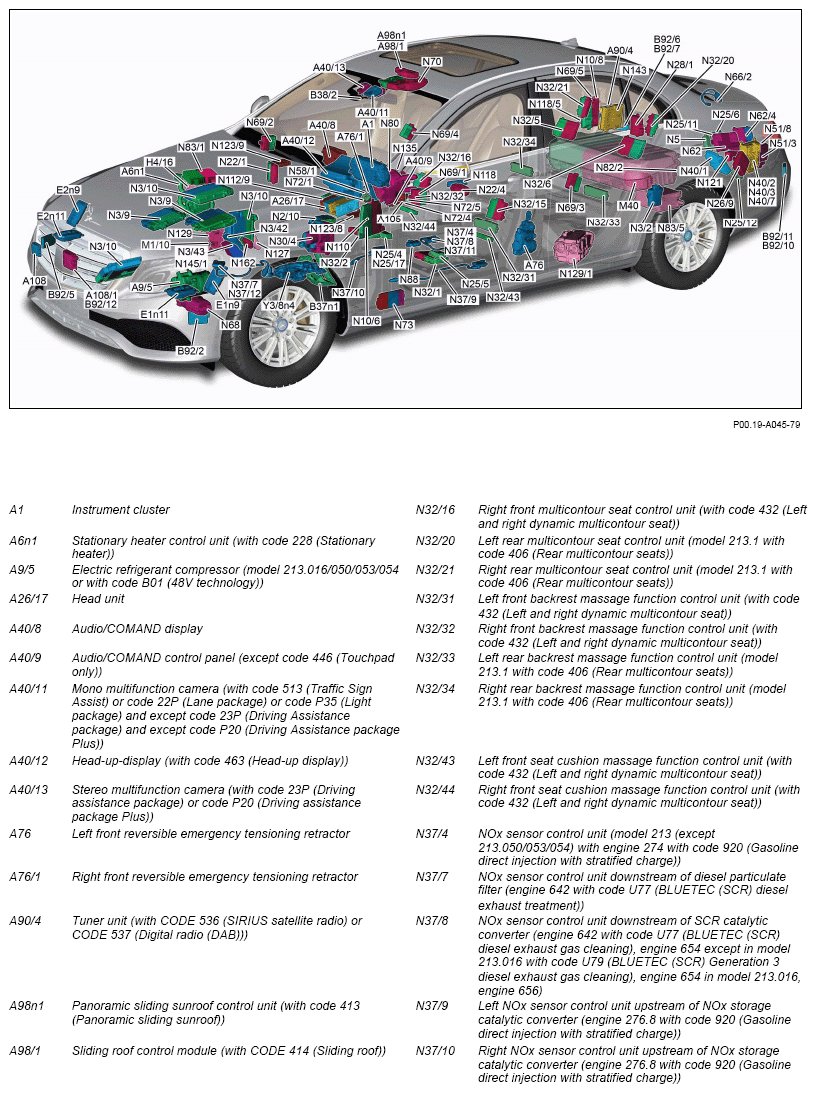

Model 213.0/1
Model 213.0 with transmission 725.096
up to model year 2021
The all-wheel drive control unit (N45) is not shown here.

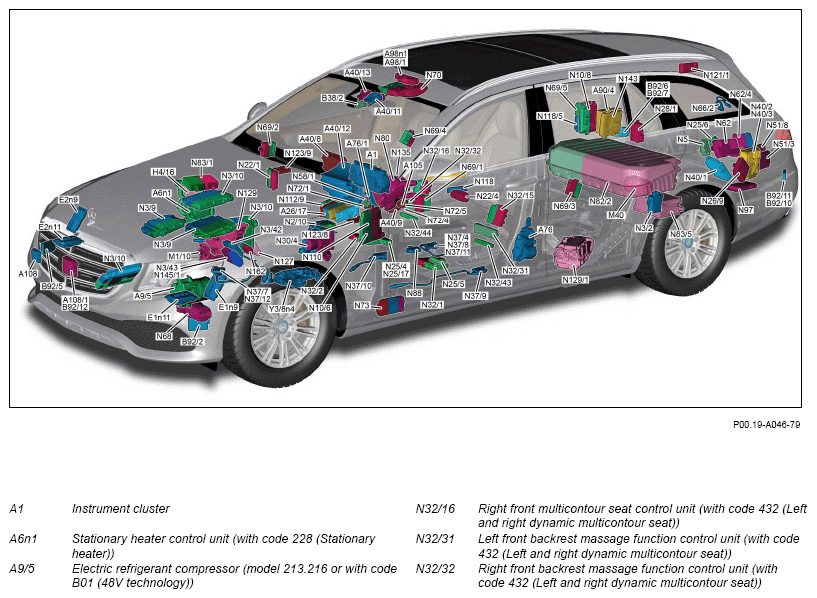

Model 213.2
Model 213.2 with transmission 725.096
up to model year 2021
The all-wheel drive control unit (N45) is not shown here.
| Component description for instrument cluster | A1 | GF54.30-P-6000FG | |
| Stationary heater control unit, component description | Model 213 up to model year 2021 with code 228 (Additional warm water heating) A6n1 |
GF83.70-P-4066FG | |
| Component description for electric refrigerant compressor | Model 213 (except 213.016/050/053/054/216) up to model year 2021 with code B01 (48V technology) Model 213.016/050/053/054/216 up to model year 2021 A9/5 |
GF83.55-P-2110FG | |
| Head unit, component description | Model 213 up to model year 2021 with code 520 (Audio 20 USB) except code 506 (Audio 20 NTG 5.5 radio) except code 522 (Audio 20 radio) except code 531 (COMAND APS) A26/17 |
GF82.85-P-3140FG | |
| Model 213 up to model year 2021 with code 522 (Audio 20 radio) except code 506 (Audio 20 NTG 5.5 radio) except code 520 (Audio 20 USB) except code 531 (COMAND APS) A26/17 |
GF82.85-P-3140FGA | ||
| Model 213 up to model year 2021 with code 506 (Audio 20 NTG 5.5 radio) Model 213 up to model year 2021 with code 531 (COMAND APS) A26/17 |
GF82.85-P-3140FGB | ||
| Component description for Audio/COMAND display | A40/8 | GF54.30-P-6150FG | |
| Component description for Audio/COMAND control panel | Model 213 up to model year 2021 except code 446 (Touchpad only) A40/9 |
GF54.21-P-4501FG | |
| Component description for multifunction camera | Model 213 up to model year 2021 with code 22P (Lane tracking package) Model 213 up to model year 2021 with code 23P (Drive package) Model 213 up to model year 2021 with code 513 (Road sign recognition system) Model 213 up to model year 2021 with code P20 (Driving assistant package Plus) Model 213 up to model year 2021 with code P35 (Light Package) A40/11, A40/13 |
GF54.21-P-3300FG | |
| Head-up display, component description | Model 213 up to model year 2021 with code 463 (Head-up display) A40/12 |
GF54.30-P-6140FG | |
| Component description for front reversible emergency tensioning retractors | A76, A76/1 | GF91.40-P-4020FG | |
| Tuner unit, component description | Model 213 up to model year 2021 with code 522 (Audio 20 radio) with code 536 (Sirius satellite radio complete system) Model 213 up to model year 2021 with code 522 (Audio 20 radio) with code 537 (DAB digital radio standard (Digital Audio Broadcast)) A90/4 |
GF82.60-P-5015FG | |
| Component description for panoramic sliding roof control module | Model 213 up to model year 2021 with code 413 (Panoramic sliding sunroof/glass roof) A98n1 |
GF77.20-P-4106FG | |
| Component description for sliding roof control module | Model 213 up to model year 2021 with code 414 (Electric sunroof, glass version) A98/1 |
GF77.20-P-4108FG | |
| Touchpad, component description | Model 213 up to model year 2021 with code 446 (Touchpad only) Model 213 up to model year 2021 with code 448 (Touchpad) A105 |
GF54.21-P-4511FG | |
| Active Brake Assist controller unit, component description | Model 213 up to model year 2021 with code 258 (Collision warning system with active brake application FCW-Stop) A108 |
GF30.30-P-3222FG | |
| DISTRONIC Distance-Pilot controller unit, component description | Model 213 up to model year 2021 with code 239 (Adaptive cruise control Pro (DISTRONIC PRO)) A108/1 |
GF30.30-P-3218FG | |
| Accelerator pedal module control unit, component description | Model 213.050/053/153 with engine 274.9 up to model year 2021 B37n1 |
GF07.08-P-2000MRP | |
| Rain/light sensor with additional functions, component description | B38/2 | GF54.21-P-6005FG | |
| Component description for bumper radar sensors | Model 213 up to model year 2021 with code 22P (Lane tracking package) Model 213 up to model year 2021 with code 23P (Drive package) Model 213 up to model year 2021 with code P20 (Driving assistant package Plus) B92/2, B92/5, B92/6, B92/7, B92/10, B92/11 |
GF30.30-P-3302FG | |
| Short and long-range radar sensor, component description | Model 213 up to model year 2021 with code 23P (Drive package) Model 213 up to model year 2021 with code P20 (Driving assistant package Plus) B92/12 |
GF30.30-P-3126FG | |
| Headlamp control unit, component description | Model 213 up to model year 2021 with code 631 (Static LED headlamps, left- hand traffic) Model 213 up to model year 2021 with code 632 (Headlamps, LED, static, right- side traffic) Model 213 up to model year 2021 with code P35 (Light Package) E1n9, E2n9 |
GF82.10-P-2020FG | |
| Front LED matrix lamp unit control unit, component description | Model 213 up to model year 2021 with code P35 (Light Package) E1n11, E2n11 |
GF82.10-P-2025FG | |
| Component description for starter-alternator | Model 213 with engine 264 up to model year 2021 with code B01 (48V technology) M1/10 |
GF15.40-P-2103FG | |
| Multicontour seat pneumatic pump (MCS), component description | Model 213.1 up to model year 2021 with code 406 (Multicontour rear seat) Model 213 up to model year 2021 with code 432 (Dynamic seats left and right) M40 |
GF91.25-P-5205FG | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080FG | |
| Electric differential lock control unit, component description | Model 213 up to model year 2021 with code 467 (Electronic locking differential) N3/2 |
GF35.40-P-2000FG | |
| Component description for CDI control unit | Model 213 with engine 642.8 up to model year 2021 N3/9 |
GF07.16-P-6000OGW | |
| Model 213 (except 213.016/216) with engine 654.9 up to model year 2021 N3/9 |
GF07.16-P-6000ORC | ||
| Model 213.016/216 with engine 654.9 up to model year 2021 N3/9 |
GF07.16-P-6000ORE | ||
| Model 213 with engine 656.9 up to model year 2021 N3/9 |
GF07.16-P-6000OIA | ||
| Component description for ME-SFI (ME) control unit | Model 213 with engine 256.9 up to model year 2021 N3/10 |
GF07.61-P-6000MRT | |
| Model 213 with engine 264.9 up to model year 2021 N3/10 |
GF07.61-P-6000MRG | ||
| Model 213 with engine 177.9 up to model year 2021 N3/10 |
GF07.61-P-6000MNA | ||
| Model 213 (except 213.050/053/153) with engine 274.9 up to model year 2021 N3/10 |
GF07.61-P-6000MRD | ||
| Model 213.050/053 with engine 274.9 up to model year 2021 N3/10 |
GF07.61-P-6000MRP | ||
| Model 213 with engine 276.8 up to model year 2021 N3/10 |
GF07.61-P-6000MND | ||
| Active engine mount control unit, component description | Model 213 with engine 177.9 up to model year 2021 with code 466 (Active engine mount) N3/42 |
GF22.10-P-2001MNA | |
| AMG sports suspension control unit, component description | Model 213 with transmission 725.096 up to model year 2018 with code 466 (Active engine mount) with code 467 (Electronic locking differential) N3/43 |
GF54.21-P-1002FG | |
| Armrest heater control unit, component description | Model 213.1 up to model year 2021 with code 907 (Rear armrest heater) Model 213 up to model year 2021 with code 906 (Front armrest heater) N5 |
GF68.20-P-2000FG | |
| Component description for front SAM control unit | N10/6 | GF54.21-P-7010FG | |
| Component description for rear SAM control unit | N10/8 | GF54.21-P-7030FG | |
| Climate control control unit, component description | N22/1 | GF83.40-P-2250FG | |
| Rear climate control operating unit, component description | Model 213 up to model year 2021 with code 581 (Automatic air conditioning) N22/4 |
GF83.40-P-3050FG | |
| Seat heater control unit, component description | Model 213 up to model year 2021 with code 902 (Seat heater Plus for driver and front passenger) except code 401 (Climatised front seats) except code 872 (Left and right rear seat heating) except code 873 (Left and right driver's seat heating) except code 903 (Rear comfort seat heating) N25/4, N25/5 |
GF91.30-P-5214FG | |
| Model 213 up to model year 2021 with code 872 (Left and right rear seat heating) except code 223 (Electric backrest adjustment and head restraints) except code 401 (Climatised front seats) except code 873 (Left and right driver's seat heating) except code 902 (Seat heater Plus for driver and front passenger) except code 903 (Rear comfort seat heating) N25/6 |
GF91.30-P-5214FGA | ||
| Model 213.1 up to model year 2021 with code 903 (Rear comfort seat heating) N25/11, N25/12 |
GF91.30-P-5214FGB | ||
| Model 213 up to model year 2021 with code 401 (Climatised front seats) except code 221 (Electrically adjustable left driver seat) except code 222 (Electrically adjustable right driver seat) except code 275 (Memory Package (driver's seat, steering column and mirror)) except code 872 (Left and right rear seat heating) except code 873 (Left and right driver's seat heating) except code 902 (Seat heater Plus for driver and front passenger) except code 903 (Rear comfort seat heating) Model 213 up to model year 2021 with code 873 (Left and right driver's seat heating) except code 221 (Electrically adjustable left driver seat) except code 222 (Electrically adjustable right driver seat) except code 275 (Memory Package (driver's seat, steering column and mirror)) except code 401 (Climatised front seats) except code 872 (Left and right rear seat heating) except code 902 (Seat heater Plus for driver and front passenger) except code 903 (Rear comfort seat heating) N25/17 |
GF91.30-P-5214FGC | ||
| Special vehicle multifunction control unit (SVMCU (MSS)), component description | Model 213 up to model year 2021 with code 965 (Taxi/rental car - electrical pre- installation) N26/9 |
GF54.21-P-4010FG | |
| Component description for trailer recognition control unit | Model 213 up to model year 2021 with code 550 (Trailer coupling) N28/1 |
GF31.19-P-4050FG | |
| Component description for Electronic Stability Program control unit | Model 213 (except 213.016/050/053/153/216) up to model year 2021 N30/4 |
GF42.45-P-5119FG | |
| Model 213.016/050/053/153/216 up to model year 2021 N30/4 |
GF42.45-P-5119FGH | ||
| Component description for driver seat control unit | Model 213 up to model year 2021 with code 221 (Electrically adjustable left driver seat) Model 213 up to model year 2021 with code 275 (Memory Package (driver's seat, steering column and mirror)) N32/1 |
GF91.29-P-5231FG | |
| Component description for front passenger seat control unit | Model 213 up to model year 2021 with code 222 (Electrically adjustable right driver seat) Model 213 up to model year 2021 with code 275 (Memory Package (driver's seat, steering column and mirror)) N32/2 |
GF91.29-P-5241FG | |
| Right rear seat control unit, component description | Model 213.1 up to model year 2021 with code 223 (Electric backrest adjustment and head restraints) N32/5 |
GF91.29-P-5290FG | |
| Left rear seat control unit, component description | Model 213.1 up to model year 2021 with code 223 (Electric backrest adjustment and head restraints) N32/6 |
GF91.29-P-5285FG | |
| Multicontour seat control unit (MCS), component description | Model 213.1 up to model year 2021 with code 406 (Multicontour rear seat) Model 213 up to model year 2021 with code 432 (Dynamic seats left and right) N32/15, N32/16, N32/20, N32/21 |
GF91.25-P-5201FG | |
| Component description for massage function control unit | Model 213.1 up to model year 2021 with code 406 (Multicontour rear seat) Model 213 up to model year 2021 with code 432 (Dynamic seats left and right) N32/31, N32/32, N32/33, N32/34, N32/43, N32/44 |
GF91.25-P-5212FG | |
| Component description for NOx sensor control unit | Model 213 (except 213.050/053/153) with engine 274.9 up to model year 2021 with code 920 (Direct fuel injection with stratified charging) N37/4 |
GF14.40-P-3024MRD | |
| Model 213 with engine 642.8 up to model year 2021 with code U77 (Diesel Emission control BLUETEC (SCR)) N37/7, N37/8 |
GF14.40-P-3024OGW | ||
| Model 213 with engine 654.9 up to model year 2021 with code U79 (BLUETEC (SCR) diesel exhaust treatment, generation 3) N37/8, N37/12 |
GF14.40-P-3024ORC | ||
| Model 213 with engine 276.8 up to model year 2021 with code 920 (Direct fuel injection with stratified charging) N37/9, N37/10, N37/11 |
GF14.40-P-3024MND | ||
| Model 213 with engine 656.9 up to model year 2021 N37/8, N37/12 |
GF14.40-P-3024OIA | ||
| Engine sound control unit, component description | Model 213 with engine 177 up to model year 2019 except code 810 (Premium sound system) except code 811 (High-End sound system) except code B63 (Engine sound via speakers) Model 213 with engine 256 up to model year 2019 except code 810 (Premium sound system) except code 811 (High-End sound system) except code B63 (Engine sound via speakers) Model 213 with engine 276.823 up to model year 2019 except code 810 (Premium sound system) except code 811 (High-End sound system) except code B63 (Engine sound via speakers) Model 213 up to model year 2021 with code B63 (Engine sound via speakers) except code 810 (Premium sound system) except code 811 (High-End sound system) N40/1 |
GF54.21-P-0019FG | |
| Component description for sound system amplifier control unit | Model 213 with engine 177 as of model year 2019 up to model year 2021 except code 810 (Premium sound system) except code 811 (High-End sound system) Model 213 with engine 256 as of model year 2019 up to model year 2021 with code M016 (Uprated engine) except code 810 (Premium sound system) except code 811 (High-End sound system) N40/2 |
GF82.62-P-5010FGB | |
| Model 213 up to model year 2021 with code 810 (Premium sound system) except code 811 (High-End sound system) N40/3 |
GF82.62-P-5010FG | ||
| Model 213 up to model year 2021 with code 811 (High-End sound system) N40/7 |
GF82.62-P-5010FGA | ||
| All-wheel drive control unit, component description | Model 213 with transmission 725.096 up to model year 2021 N45 |
GF28.19-P-3211AVL | |
| AIR BODY CONTROL control unit, component description | Model 213 up to model year 2021 with code 489 (AIR BODY CONTROL) N51/3, N51/8 |
GF32.22-P-5111FG | |
| Front climate control operating unit, component description | N58/1 | GF83.40-P-2260FG | |
| Parking system control unit, component description | Model 213 up to model year 2021 with code 235 (Active Parking Assist) Model 213 up to model year 2021 with code P44 (Parking package) N62 |
GF54.65-P-5004FG | |
| Mercedes-Benz Intelligent Drive control unit, component description | Model 213 up to model year 2021 with code 23P (Drive package) Model 213 up to model year 2021 with code P20 (Driving assistant package Plus) N62/4 |
GF30.30-P-3312FG | |
| Component description for reversing camera control unit | Model 213 up to model year 2021 with code 218 (Rear view camera) except code 235 (Active Parking Assist) except code P44 (Parking package) N66/2 |
GF54.65-P-5030FG | |
| Electrical power steering control unit (ES), component description | N68 | GF46.35-P-7010FG | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001FG | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009FG | |
| Component description for rear door control unit | N69/3, N69/4 | GF72.29-P-6021FG | |
| Component description for KEYLESS-GO control unit | N69/5 | GF80.61-P-4204FG | |
| Component description for overhead control panel control unit | N70 | GF82.20-P-5216FG | |
| Upper control panel control unit, component description | N72/1 | GF54.21-P-6040FG | |
| Lower control panel, component description | N72/4, N72/5 | GF54.25-P-4270FG | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001FG | |
| Component description for steering column tube module control unit | Model 213 as of model year 2019 up to model year 2021 N80 |
GF54.21-P-6051FGA | |
| Model 213 up to model year 2019 N80 |
GF54.21-P-6051FG | ||
| Component description for battery management system control unit | Model 213.016/216 with engine 654.920 up to model year 2021 Model 213.050/053/153 with engine 274.920 up to model year 2021 N82/2 |
GF54.10-P-3012FGH | |
| Component description for DC/DC converter control unit | Model 213 up to model year 2021 with code B01 (48V technology) N83/1 |
GF54.10-P-3006FG | |
| High-voltage charger control unit, component description | Model 213.016/216 with engine 654.920 up to model year 2021 Model 213.050 with engine 274.9 up to model year 2021 Model 213.053/153 with engine 274.920 up to model year 2021 N83/5 |
GF08.20-P-2000FGH | |
| Component description for tire pressure monitor control unit | Model 213 up to model year 2021 with code 475 (Tire pressure monitor (TPM)) N88 |
GF40.15-P-5124FG | |
| Rear axle electronic level control control unit | Model 213.2 up to model year 2021 except code 459 (Steel suspension with adjustable damping) except code 489 (AIR BODY CONTROL) N97 |
GF32.33-P-3405FG | |
| Component description for Weight Sensing System (WSS) control unit | Model 213 up to model year 2021 with code U10 (Front passenger seat with weight sensor) N110 |
GF91.60-P-4069FG | |
| HERMES control unit, component description | Model 213 up to model year 2021 with code 360 (HERMES UMTS) Model 213 up to model year 2021 with code 362 (HERMES communications module LTE) N112/9 |
GF82.85-P-0221FG | |
| Component description for fuel pump control unit | Model 213 with engine 177.9 up to model year 2021 N118 |
GF47.40-P-2001MNA | |
| Model 213 with engine 256.9, 264.9, 274.9, 276.8 up to model year 2021 N118 |
GF47.40-P-2001MRD | ||
| Model 213 (except 213.016/216) with engine 654.9 up to model year 2021 Model 213 with engine 642.8 up to model year 2021 N118 |
GF47.40-P-2001ORC | ||
| Model 213.016/216 with engine 654.9 up to model year 2021 N118 |
GF47.40-P-2001ORE | ||
| Model 213 with engine 656.9 up to model year 2021 N118 |
GF47.40-P-2001OGS | ||
| Component description for exhaust aftertreatment control unit | Model 213 with engine 642.8 up to model year 2021 with code U77 (Diesel Emission control BLUETEC (SCR)) N118/5 |
GF14.40-P-3030OGW | |
| Model 213 with engine 654.9 up to model year 2021 with code U79 (BLUETEC (SCR) diesel exhaust treatment, generation 3) N118/5 |
GF14.40-P-3030ORC | ||
| Model 213 with engine 656.9 up to model year 2021 N118/5 |
GF14.40-P-3030OIA | ||
| Trunk lid/liftgate control control unit, component description | Model 213.0/1 up to model year 2021 with code 881 (Remote boot-lid closing) Model 213.2 up to model year 2021 with code 890 (Automatic rear-end door) N121, N121/1 |
GF80.20-P-6092FG | |
| Mobile phone cradle control unit component description | Model 213 up to model year 2021 with code 896 (Vehicle access and authorization via smartphone) Model 213 up to model year 2021 with code 897 (Front wireless telephone charging) Model 213 up to model year 2021 with code 899 (Front wireless telephone charging and antenna) N123/8 |
GF82.70-P-0201FG | |
| Telephone control unit, component description | Model 213 up to model year 2021 with code 380 (Car telephony package) N123/9 |
GF82.70-P-4153FG | |
| Drivetrain control unit, component description | Model 213 with engine 177.9 up to model year 2021 N127 |
GF54.21-P-2141MNA | |
| Model 213 with engine 256.9 up to model year 2021 N127 |
GF54.21-P-2141LF | ||
| Model 213 with engine 264.9, 274.9, 276.8 up to model year 2021 N127 |
GF54.21-P-2141MRP | ||
| Model 213 (except 213.016/216) with engine 654.9 up to model year 2021 Model 213 with engine 642.8 up to model year 2021 N127 |
GF54.21-P-2141ORC | ||
| Model 213.016/216 with engine 654.9 up to model year 2021 N127 |
GF54.21-P-2141ORE | ||
| Model 213 with engine 656.9 up to model year 2021 N127 |
GF54.21-P-2141OGS | ||
| Starter-alternator control unit component description | Model 213 with engine 256 up to model year 2021 with code B01 (48V technology) N129 |
GF54.21-P-4191FG | |
| Component description for power electronics control unit | Model 213.016/216 with engine 654.920 up to model year 2021 Model 213.050 with engine 274.9 up to model year 2021 Model 213.053/153 with engine 274.920 up to model year 2021 N129/1 |
GF08.20-P-1001FGH | |
| Steering wheel electronics control unit, component description | Model 213 as of model year 2019 up to model year 2021 N135 |
GF82.90-P-4006FG | |
| Digital TV tuner, component description | Model 213 up to model year 2021 with code 531 (COMAND APS) with code 865 (digital TV) N143 |
GF82.60-P-3118FG | |
| Drive unit control unit component description | Model 213 with transmission 725.096 as of model year 2018 up to model year 2021 Model 213 with transmission 725.096 up to model year 2018 except code 466 (Active engine mount) except code 467 (Electronic locking differential) Model 213.064/264 with transmission 725.0 up to model year 2021 N145/1 |
GF27.60-P-5168FG | |
| Ambiance illumination control unit, component description | Model 213 up to model year 2021 with code 877 (Ambient lighting) N162 |
GF82.20-P-5161FG | |
| Component description for fully integrated transmission control unit | Model 213 with transmission 725.0 (except 725.007/017/096) up to model year 2021 Y38n4 |
GF27.60-P-5165ANL | |
| Model 213 with transmission 725.007/017 up to model year 2021 Y38n4 |
GF27.60-P-5165AHU | ||
| Model 213 with transmission 725.096 up to model year 2021 Y38n4 |
GF27.60-P-5165ANO | ||
