Component Description For Audio/Comand Display - GF54.30-P-6150FG
Model 213 up to model year 2021

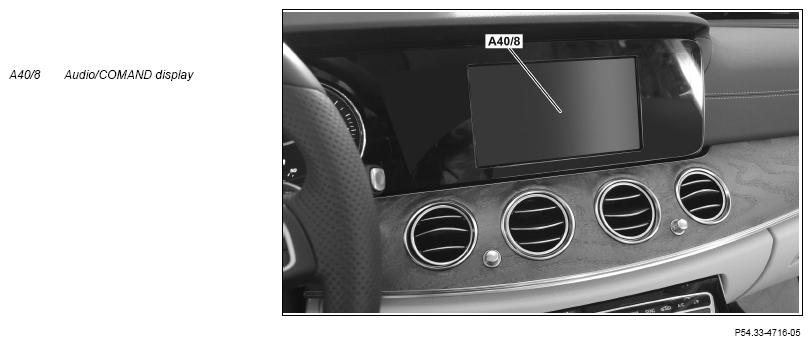

Shown with CODE 522 (Audio 20 radio)
Location
The Audio/COMMAND display is installed at the top center of the instrument panel.
Tasks
The audio/COMMAND display is used to show user-relevant operating and information windows as well as to show video information.
The Audio/COMMAND display receives the following signals:
- Control signals (e.g. switch on) over the telematics CAN (CAN A) from the head unit (A26/17)
- Picture signals via high-speed video link (HSVL) interface of head unit
The audio/COMMAND display evaluates the input factors and actuates the color screen.
Variants
The Audio/COMMAND display is available in the following variants:
- 8.4 "High-definition (HD) display (with code 520 (Audio 20 USB) or code 522 (Audio 20 radio))
- 12.3 "HD display (with code 506 (Audio 20 NTG 5.5 radio) or code 531 (COMMAND APS))"
| Wiring diagram for Audio/COMMAND display | PE82.00-P-2080-97DBA |
