Component Description For Panoramic Sliding Roof Control Module - GF77.20-P-4106FG
Model 213
up to model year 2021
with code 413 (Panoramic sliding sunroof/glass roof)

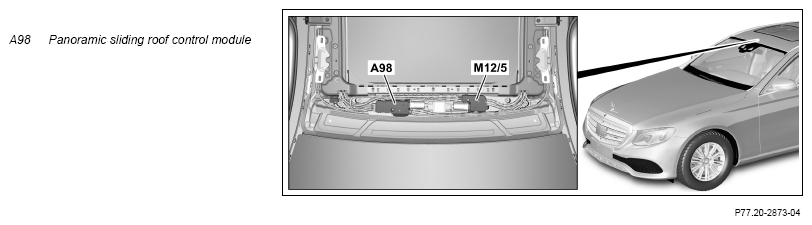

Location
The panoramic sliding sunroof control module is located at the front on the frame of the panoramic sliding sunroof.
Task
The panoramic sliding door control unit (A98n1) in the panoramic sliding sunroof control module has the following tasks:
- Reading in of sensors and signals
- Evaluation of input factors
- Actuation of components
Reading in of sensors and signals
The input factors are read in via the following connections:
- Direct line
- Interior CAN (CAN B)
Direct line
The signals from the following sensors are read via direct lines:
- Hall sensor 1, panoramic sliding sunroof (A98b1)
- Hall sensor 2, panoramic sliding sunroof (A98b2)
- Hall sensor 1, panoramic sliding sunroof roller sun blind (M12/5b1)
- Hall sensor 2, panoramic sliding sunroof roller sun blind (M12/5b2)
Interior CAN
The following information is read in via the interior CAN:
- Status of roof system switch (N70s1)
- Data for rain/light sensor with additional functions (B38/2)
- Status of left front door
- Status of right front door
- Outside temperature
- Vehicle speed
Evaluation of input factors
The input factors that have been read in are evaluated by the integrated microprocessor and the relevant components are then actuated.
Actuation of components
The following components are actuated via direct lines:
- Panoramic sliding roof motor (A98m1)
- Panoramic sliding sunroof roller sun blind motor (M12/5m1)
Body
The panoramic sliding roof control module consists of the following components:
- Hall sensor 1, panoramic sliding roof
- Hall sensor 2, panoramic sliding roof
- Panoramic sliding roof motor
- Panoramic sliding roof control unit
| Wiring diagram for sliding roof control module | PE77.20-P-2103-97DBA |
