Component Description For Rear Door Control Unit - GF72.29-P-6021FG

Model 213 up to model year 2021

Shown on model 213.0

Courtesy of MERCEDES-BENZ USA

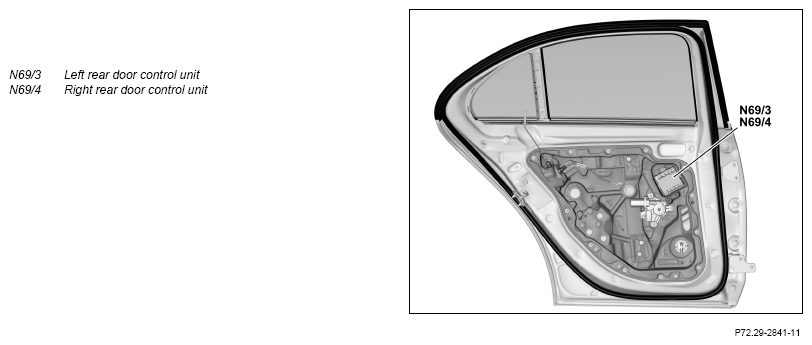

Location

The Rear door control units are located on the corresponding door module behind the door trim.

Task

The Rear door control units have the following tasks:

• Reading in of sensors and signals
• Evaluation of input factors
• Actuation of components
• Transmitting signals

Reading in of sensors and signals

The input factors are read in via the following connections:

• Direct line
• Left Rear door LIN (LIN B9)
• Right Rear door LIN (LIN B10)
• Interior CAN (CAN B)

Direct line

The left Rear door control unit reads in the signals from the following components over direct lines:

• Left Rear door power closing microswitch actuator motor (A85/3s1) (with Code 883 (Power closing))
• Left Rear door main catch microswitch (A85/3s2)
• Left Rear door inside door handle microswitch (A85/3s3) (with Code 883 (Power closing))
• Left Rear door external operation microswitch (A85/3s4) (with Code 883 (Power closing))
• Hall sensor in left Rear door power window motor (M10/5)
• Left Rear door power closing microswitch (M14/23s1) (with Code 883 (Power closing))
• Heating element temperature sensor of left Rear seat armrest (R16/7b1) (model 213.1 with Code 907 (Rear armrest heating))
• Left Rear power window switch (S21/3) (except Code 297 (Roller sun blinds in Rear doors))

The left Rear door control unit reads in the signals from the following components over direct lines:

• Right Rear door precatch microswitch (A85/4s1) (with Code 883 (Power closing))
• Right Rear door main catch microswitch (A85/4s2)
• Right Rear inside door handle microswitch (A85/4s3) (with Code 883 (Power closing))
• Right Rear door external operation microswitch (A85/4s4) (with Code 883 (Power closing))
• Hall sensor in right Rear door power window motor (M10/6)
• Right Rear door power closing actuator motor microswitch (M14/24s1) (with Code 883 (Power closing))
• Heating element temperature sensor of right Rear seat armrest (R16/8b1) (model 213.1 with Code 907 (Rear armrest heating))
• Right Rear power window switch (S21/4) (except Code 297 (Roller sun blinds in Rear doors))

Left Rear door LIN

The left Rear door control unit reads in the signals from the following components via the left Rear door LIN:

• Left Rear door switch group (S21/6) (model 213.1 with Code 297 (Roller sun blind in Rear doors)):
  • Power window switch and left Rear side window roller sun blind (S21/6s1)
  • Power window switch and right Rear side window roller sun blind (S21/6s2)
  • Rear window roller sun blind motor (S21/6s3) (model 213.0/1 with Code 540 (Electric roller sun blind for Rear window))
  • Panoramic sliding sunroof roller blind switch (S21/6s4) (with Code 413 (Panoramic sliding sunroof))
• Left Rear seat climate control switch group (S51/3) (with Code 872 (Rear seat heater), model 213.1 with Code 402 (Rear comfort seats, including seat heater and seat ventilation) or Code 903 (Seat heater Plus for Rear outer seats)):
  • Left Rear seat heater switch (S51/3s1)
  • Left Rear seat ventilation switch (S51/3s2) (model 213.1 with Code 402 (Rear comfort seats, including seat heater and seat ventilation))
• Left Rear seat adjustment switch group (S55/1) (model 213.1 with Code 223 (Electrically adjustable Rear bench seat)):
  • Left Rear seat head restraint adjustment switch (S55/1s1)
  • Left Rear seat backrest adjustment switch (S55/1 s5)
  • Left Rear seat memory function switch (S55/1 s6) (with Code 276 (Rear memory function))
  • Left Rear seat memory 1 switch (S55/1 s7) (with Code 276 (Rear memory function))
  • Left Rear seat memory 2 switch (S55/1 s8) (with Code 276 (Rear memory function))
  • Left Rear seat memory 3 switch (S55/1 s9) (with Code 276 (Rear memory function))

Right Rear door LIN

The right Rear door control unit reads in the control signals from the following components via the right Rear door LIN:

• Right Rear door switch group (S21/7) (model 213.1 with Code 297 (Roller sun blind in Rear doors)):
  • Power window switch and right Rear side window roller sun blind (S21/7s1)
  • Power window switch and left Rear side window roller sun blind (S21/7s2)
  • Rear window roller sun blind motor (S21/7s3) (model 213.0/1 with Code 540 (Electric roller sun blind for Rear window))
  • Panoramic sliding sunroof roller blind switch (S21/7s4) (with Code 413 (Panoramic sliding sunroof))
• Right Rear seat climate control switch group (S51/4) (with Code 872 (Rear seat heater), model 213.1 with Code 402 (Rear comfort seats, including seat heater and seat ventilation) or Code 903 (Seat heater Plus for Rear outer seats)):
  • Right Rear seat heater switch (S51/4s1)
  • Right Rear seat ventilation switch (S51/4s2) (model 213.1 with Code 402 (Rear comfort seats, including seat heater and seat ventilation))
  • Right Front passenger seat or Rear seat adjustment switch (S51//4s3) (model 213.1 with Code 223 (Electrically adjustable Rear bench seat))
  • Front passenger seat forward adjustment switch (S51/4s4) (model 213.1 except Code 223 (Electrically adjustable Rear bench seat))
  • Front passenger seat rearward adjustment switch (S51/4s5) (model 213.1 except Code 223 (Electrically adjustable Rear bench seat))
• Right Rear seat adjustment switch group (S55/2) (model 213.1 with Code 223 (Electrically adjustable Rear bench seat)):
  • Right Rear seat head restraint adjustment switch (S55/2s1)
  • Right Rear seat backrest adjustment switch (S55/2s5)
  • Right Rear seat memory function switch (S55/2s6) (with Code 276 (Rear memory function))
  • Right Rear seat memory 1 switch (S55/2s7) (with Code 276 (Rear memory function))
  • Right Rear seat memory 2 switch (S55/2s8) (with Code 276 (Rear memory function))
  • Right Rear seat memory 3 switch (S55/2s9) (with Code 276 (Rear memory function))

Interior CAN

The Rear door control units read in the following signals, among others, via the interior CAN:

• Terminal status of terminal 15
• CL locking unlocking/locking request
• PRE-SAFE® adjustment request
• Convenience feature request

Evaluation of input factors

The input factors that have been read in are evaluated by the integrated microprocessor and the relevant components are then actuated.

Actuation of components

The following components are actuated by the left Rear door control unit via direct lines:

• Left Rear door central locking motor (A85/3m1)
• Left Rear door additional door lock actuator motor (A85/3m4) (with Code (885) Increased theft protection)
• Left Rear door exit/warning lamp (E17/5) (with Code 877 (Ambiance illumination))
• Left Rear door outer door handle illumination (E17/23) (with Code 889 (KEYLESS-GO))
• Left Rear door power window motor
• Left Rear door power closing actuator motor (M14/23s1) (with Code 883 (Power closing))
• Left Rear door roller sun blind motor (M24/5) (model 213.1 with Code 297 (Roller sun blind in Rear doors))
• Left Rear seat armrest heating element (R16/7) (model 213.1 with Code 907 (Rear armrest heater))

The left Front door control unit supplies additionally the switch illumination (circuit 58d) and ambiance illumination (with Code 877 (Ambiance illumination)) with voltage.

The following components are actuated by the right Rear door control unit via direct lines:

• Right Rear door central locking motor (A85/4m1)
• Left Rear door additional door lock actuator motor (A85/4m4) (with Code (885) Increased theft protection)
• Right Rear door exit/warning lamp (E17/6) (with Code 877 (Ambiance illumination))
• Right Rear door outer door handle illumination (E17/24) (with Code 889 (KEYLESS-GO))
• Right Rear door power window motor
• Right Rear door power closing actuator motor actuator motor (M14/24s1) (with Code 883 (Power closing))
• Right Rear door roller sun blind motor (M24/6) (model 213.1 with Code 297 (Roller sun blind in Rear doors))
• Right Rear seat armrest heating element (R16/8) (model 213.1 with Code 907 (Rear armrest heater))

The right Front door control unit supplies additionally the switch illumination (circuit 58d) and ambiance illumination (with Code 877 (Ambiance illumination)) with voltage.

Transmitting signals

The Rear door control units transmits the signals via the following connections:

• Rear door LIN
• Interior CAN

Rear door LIN

The Rear door control units send the following signals, among others, via the door LIN:

• Status of seat heater (with Code 872 (Rear seat heater), model 213.1 with Code 402 (Rear comfort seats, including seat heater and seat ventilation) or Code 903 (Seat heater Plus for Rear outer seats))
• Status of seat ventilation (model 213.1 with Code 402 (Rear comfort seats, including seat heater and seat ventilation))

Interior CAN

The Rear door control units send the following signals, among others, via the interior CAN:

• Door status (open/closed)
• Seat heater request (with Code 872 (Rear seat heater), model 213.1 with Code 402 (Rear comfort seats, including seat heater and seat ventilation) or Code 903 (Seat heater Plus for Rear outer seats))
• Seat ventilation request (model 213.1 with Code 402 (Rear comfort seats, including seat heater and seat ventilation))
• Seat adjustment request (model 213.1 with Code 223 (Electrically adjustable Rear bench seat))
• Request for storing/moving to memory position (model 213.1 with Code 276 (Rear memory function))

	Left Rear door control unit electric wiring harness		PE72.29-P-2103-97DBA
	Right Rear door control unit electric wiring diagram		PE72.29-P-2104-97DBA
