Trunk Lid/Liftgate Control Unit, Component Description - GF80.20-P-6092FG

Model 213.0/1

up to model year 2021

with code 881 (Remote boot-lid closing)

Model 213.2

up to model year 2021

with code 890 (Automatic rear-end door)

Location

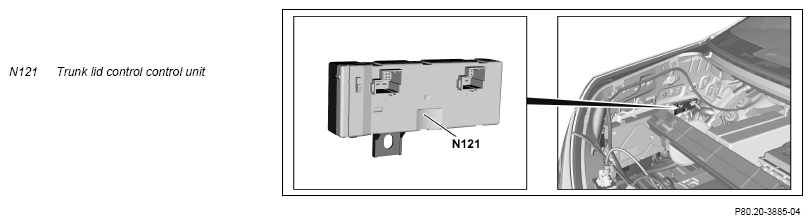

The control unit for the trunk lid control is located at the left in the trunk close to the C-pillar between an intermediate panel and the panel.

Location

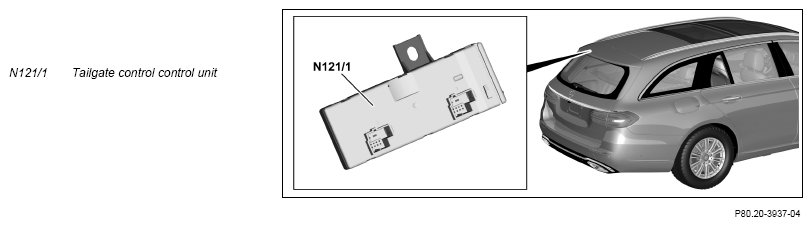

The liftgate control unit is fastened at the top left in the load compartment beneath the cover.

Task

The trunk lid control unit or liftgate control unit has the following tasks:

• Reading in of sensors and signals
• Evaluation of input factors
• Actuation of components

Reading in of sensors and signals

The input factors are read in via the following connections:

• Direct line
• Interior CAN (CAN B)

Direct line

The signals from the following components are read via direct line:

• Trunk lid/liftgate control Hall sensor (M51/3b1) (model 213.2)
• Trunk lid/liftgate control position sensor (M51/3b2) (model 213.0/1)

Interior CAN

The following signals, among others, are read in via interior CAN:

• Vehicle speed (from instrument cluster (A1))
• Status of driver trunk lid/liftgate control button (S15/3) (left front door control unit (N69/1))
• Status of the trunk lid/liftgate lock (A85/5) (Rear SAM control unit (N10/8))
• Status of trunk lid/liftgate control button (S62/26) (rear SAM control unit)
• Circuit 15 status from electronic ignition lock control unit (N73)
• Status of open trunk lid/liftgate button on transmitter key (A8/1) (Electronic ignition lock control unit)
• Status of rear switching module (N38) (with code 871 (HANDS-FREE ACCESS)) (KEYLESS-GO control unit (N69/5))
• Status of opening angle limit (electronic ignition lock control unit)

Evaluation of input factors

The input factors that have been read in are evaluated by the integrated microprocessor and the relevant components are then actuated.

Actuation of components

The following components are actuated via direct lines:

• Trunk lid/tailgate control warning buzzer (H4/60) (model 213.0/1 with code 871 (HANDS-FREE ACCESS), model 213.2)
• Trunk lid/liftgate control electric motor (M51/3m1)

	Wiring diagram for trunk lid control unit	Model 213.0/1 up to model year 2021 with code 881 (Remote boot-lid closing)	PE72.20-P-2103-97DBA
	Wiring diagram for liftgate control unit	Model 213.2 up to model year 2021 with code 890 (Automatic rear-end door)	PE72.20-P-2104-97DBA
