Component Description For Overhead Control Panel Control Unit - GF82.20-P-5216FG
Model 213 up to model year 2021

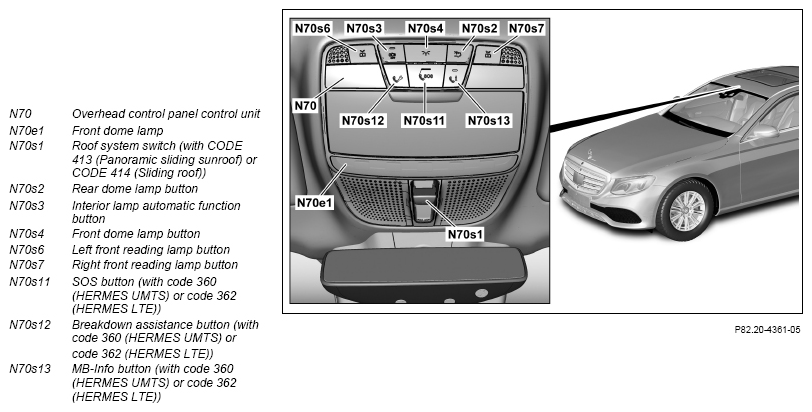

Shown on overhead control panel control unit on model 213.0 up to 31.05.2018 with code 414 (Sliding sunroof) and code 360 (HERMES UMTS)

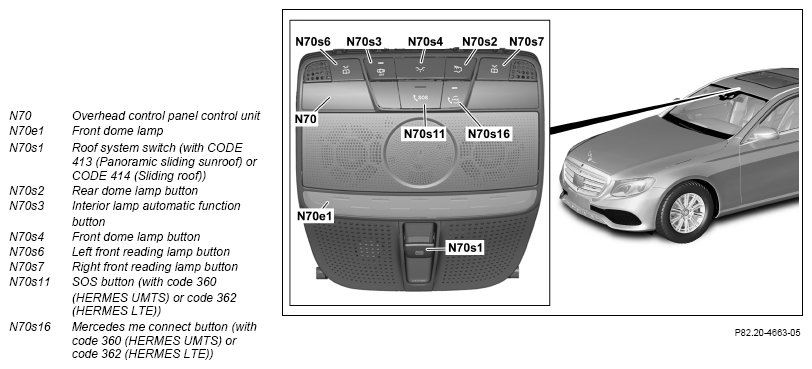

Location
The overhead control panel control unit is located in the front section of the headliner.
Tasks
The overhead control panel control unit has the following tasks:
- Reading in of signals
- Evaluation of input factors
- Actuation of components
- Transmission and reception of ultrasound waves (with code 882 (Interior protection and tow-away protection) or code 852 (Sensor system for anti-theft alarm system (ATA)))
- Detection of changes to vehicle inclination (with code 882 (Interior protection and tow-away protection) or code 852 (Sensor system for anti-theft alarm system (ATA)))
Reading in of signals
The input factors are read in via the following connections:
- Direct line
- Roof LIN (LIN B13)
- Alarm system LIN (LIN B14) (with code 882 (Interior protection and tow-away protection))
- Interior CAN (CAN B)
Direct line
The signals from the following components are read via direct lines:
- Interior temperature sensor with integrated fan (N70b1)
- Roof system switch (with CODE 413 (Panoramic sliding sunroof) or CODE 414 (Sliding roof))
- Interior lamp automatic function button
- Front dome lamp button
- Rear dome lamp button
- Left front reading lamp button
- Right front reading lamp button
- SOS button (with code 360 (HERMES UMTS) or code 362 (HERMES LTE))
- Breakdown assistance button (up to 31.05.2018 with code 360 (HERMES UMTS) or code 362 (HERMES LTE))
- MB Info button (up to 31.05.2018 with code 360 (HERMES UMTS) or code 362 (HERMES LTE))
- Mercedes me connect button (as of 01.06.2018 with code 351 (Emergency call system (HERMES)))
- Left rear dome lamp button (E11/1s1) (with code 877 (Ambiance illumination)) in the left rear dome lamp (E11/1)
- Right rear dome lamp button (E11/2s1) (with code 877 (Ambiance illumination)) in the right rear dome lamp (E11/2)
- Left rear vanity mirror illumination switch (E15/10s1) in left rear vanity mirror unit (E15/10) (model 213.1 with code U05 (Make-up mirror in rear))
- Right rear vanity mirror illumination switch (E15/11s1) in right rear vanity mirror unit (E15/11) (model 213.1 with code U05 (Make-up mirror in rear))
- Left rear glass breakage sensor (B39), right rear glass breakage sensor (B39/1) and rear window glass breakage sensor (B39/4) (model 213.2 with code 882 (Interior protection and tow-away protection))
Roof LIN
The signals are read in by the overhead control panel control unit via the roof LIN.
Alarm system LIN (with code 882 (Interior protection and tow-away protection))
The overhead control panel control unit reads in the signals from the alarm siren (H3/1) via the alarm system LIN.
Interior CAN
The signals are read in by the overhead control panel control unit via the interior CAN.
Evaluation of input factors
The input factors are evaluated by the microprocessor and the relevant components are actuated.
Actuation of components
The actuation of the components takes place via the following connections:
- Direct line
- Roof LIN
- Alarm system LIN (with code 882 (Interior protection and tow-away protection))
- Interior CAN
Direct line
The following components are actuated via direct lines:
- Front dome lamp
- Eyeglasses box illumination (N70e8)
- Fan motor in interior temperature sensor with integrated fan
- Left sun visor mirror lamp (E14/1) via the left front mirror lamp switch (S101)
- Right sun visor mirror lamp (E14/2) via the right front mirror lamp switch (S102)
- Left rear dome lamp
- Left rear reading lamp (E11/1e1) (with code 877 (Ambient lighting))
- Left rear interior lamp (E11/1e2)
- Right rear dome lamp
- Right rear reading lamp (E11/2e1) (with code 877 (Ambient lighting))
- Right rear interior lamp (E11/2e2)
- Left rear vanity mirror unit (model 213.1 with code U05 (Make-up mirror in rear))
- Left rear vanity mirror illumination (E15/10e1)
- Left rear vanity mirror dome lamp (E15/10e2)
- Right rear vanity mirror unit (model 213.1 with code U05 (Make-up mirror in rear))
- Right rear vanity mirror illumination (E15/11e1)
- Right rear vanity mirror dome lamp (E15/11 e2)
Roof LIN
The overhead control panel control unit actuates the following components over the roof-LIN:
- Left reading lamp (A67e1)
- Right reading lamp (A67e2)
- Ambient lamp (A67e3)
Alarm system LIN (with code 882 (Interior protection and tow-away protection))
The overhead control panel control unit actuates the alarm siren via the alarm system LIN.
Interior CAN
The signals are sent by the overhead control panel control unit via the interior CAN.
Transmission and reception of ultrasound waves (with code 882 (Interior protection and tow-away protection) or code 852 (Sensor system for anti-theft alarm system (ATA)))
The overhead control panel control unit monitors the vehicle interior for movements by sending and receiving ultrasonic waves. The overhead control panel control unit contains the following components for this purpose:
- Interior protection receiver (N70a1)
- Left interior protection transmitter (N70a2)
- Right interior protection transmitter (N70a3)
Detection of changes to vehicle inclination (with code 882
(Interior protection and tow-away protection) or code 852 (Sensor system for anti-theft alarm system (ATA)))
If the inclination sensor integrated in the overhead control panel control unit senses an alarm-relevant inclination change, an alarm is output.
| Wiring diagram for overhead control panel (OCP) control unit | PE54.21-P-2107-97DBA |
