Seat Heater Control Unit, Component Description - GF91.30-P-5214FGC

Model 213

up to model year 2021

with code 401 (Climatised front seats)

except code 221 (Electrically adjustable left driver seat)

except code 222 (Electrically adjustable right driver seat)

except code 275 (Memory Package (driver's seat, steering column and mirror))

except code 872 (Left and right rear seat heating)

except code 873 (Left and right driver's seat heating)

except code 902 (Seat heater Plus for driver and front passenger)

except code 903 (Rear comfort seat heating)

Model 213

up to model year 2021

with code 873 (Left and right driver's seat heating)

except code 221 (Electrically adjustable left driver seat)

except code 222 (Electrically adjustable right driver seat)

except code 275 (Memory Package (driver's seat, steering column and mirror))

except code 401 (Climatised front seats)

except code 872 (Left and right rear seat heating)

except code 902 (Seat heater Plus for driver and front passenger)

except code 903 (Rear comfort seat heating)

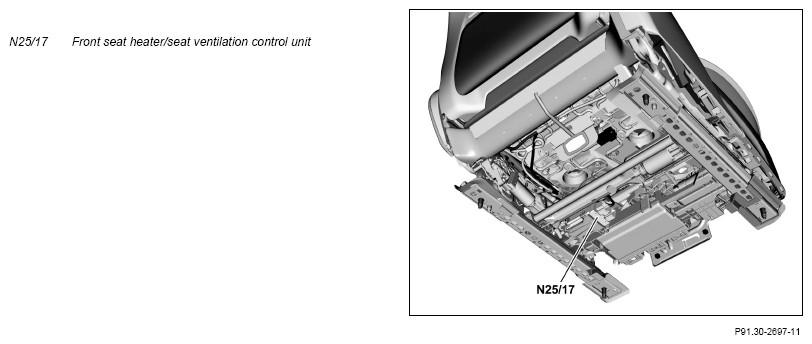

Fig 1: Seat Heater Control Unit Components Location - Model 213 Up To Model Year 2021 With Codes 401 And 873

Courtesy of MERCEDES-BENZ USA

Location

The front seat heater control unit is located on the front passenger seat frame.

Task

The front seat heater control unit communicates over the heater LIN (LIN B28) with the rear SAM control unit (N10/8).

Depending on the request involved the front seat heater control unit actuates the following components directly:

Left front seat cushion seat ventilation motors (M18/9) (with CODE 401 (Seat climate control for driver and front passenger))
Left front backrest seat ventilation motors (M18/10) (with CODE 401 (Seat climate control for driver and front passenger))
Right front seat cushion seat ventilation motors (M18/11) (with CODE 401 (Seat climate control for driver and front passenger))
Right front backrest seat ventilation motors (M18/12) (with CODE 401 (Seat climate control for driver and front passenger))
Left front seat cushion heater pad (R13/1)
Left front seat backrest heater pad (R13/2)
Right front seat cushion heater pad (R13/3)
Right front seat backrest heater pad (R13/4)
Left front seat adjustable seat cushion length heater pad (R24) (with code P65 (Seating comfort package))
Right front seat adjustable seat cushion length heater pad (R24/1) (with code P65 (Seating comfort package))

Wiring diagram for front seat heater control unit
