Multicontour Seat Pneumatic Pump (MCS), Component Description - GF91.25-P-5205FG
Model 213.1
up to model year 2021
with code 406 (Multicontour rear seat)
Model 213
up to model year 2021
with code 432 (Dynamic seats left and right)

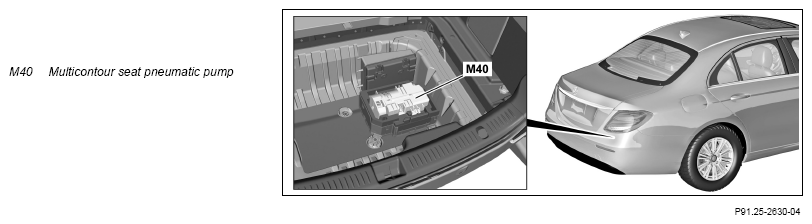

Shown on model 213.0
Location
The multicontour seat pneumatic pump is on the right beneath the trunk floor.
Tasks
The multicontour seat pneumatic pump has the following tasks:
- Compressed air supply for the multicontour seats
- Pressure monitoring of the compressed air reservoir by means of a sensor
- Switch on/off of internal solenoid valve for compressed air supply
- Pneumatic system leak detection
- Automatic shutoff of compressed air supply after 60 s of continuous operation
- Overpressure run of pneumatic system and subsequent actuation of solenoid valve on pressure tank for draining compression moisture in pressure tank
The tasks are subdivided as follows:
- Read in sensors and signals
- Evaluation of input factors
- Actuation of components
Read in sensors and signals
The input factors are read in via the following connections:
- Direct line
- Interior CAN (CAN B)
Direct line
The signals of the pressure sensor in the multicontour seat pneumatic pump are read in directly via an internal line.
Interior CAN
The following signals, among others, are read in via interior CAN:
- Compressed air supply request
- Massage intensity status
- Dynamic function status (with code 432 (Left and right dynamic multicontour seat))
Evaluation of input factors
The read in input factors are evaluated by the pneumatic pump for multicontour seat.
Actuation of components
The solenoid valve for draining the compression moisture in the pressure tank is actuated via an internal direct line.
The multicontour seat pneumatic pump does not transmit any requests via the interior CAN. Only information about further processing and information for other control units is sent via the interior CAN.
| Left front multicontour seat control unit wiring diagram | Model 213 up to model year 2021 with code 432 (Dynamic seats left and right) | PE91.25-P-2103-97DBA | |
| Right front multicontour seat control unit wiring diagram | Model 213 up to model year 2021 with code 432 (Dynamic seats left and right) | PE91.25-P-2103-97DBB |
