61 13... Notes for opening contacts and locks of different plug contact systems: Notes

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Abbreviations of contacts and what they mean:
ELA	Strand seal
D 1.5/2.5/3.5	Round contacts with 1.5 mm, 2.5 mm or 3.5 mm diameter
MDK	Miniature double flat spring contact
JPT	Junior Power timer
DFK	Double flat spring contacts
Elo	Electronic contacts
Elo	Power Electronic contacts for heavy load
MQS	Micro Quadlock system
MPQ	Micro Power Quadlock
MLK	Mini laminated contact
SLK	Sensor laminated contact
LSK	Load current contact
MLK	Mini laminated contact
Mcon	Multi contact

IMPORTANT:

The contacts can be changed on ultrasonically welded connectors (1).

Ultrasonically welded connectors (1) must be replaced completely.

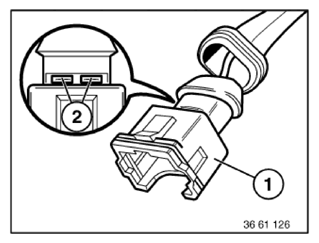

Ultrasonic-welded connectors (1) can be identified by the welds (2) on their longitudinal side.

Fig 1: Locating Ultrasonic-Welded Connectors

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Special tools referred to in the repair instructions below are contained in the following special tool sets:

Unlocking and pressing-off tool 61 1 150
is replaced as of 09/2005 by 61 0 300 (BMW) and 61 0 400 (MINI)

Release and pressing-off tool 61 1 100 (engine)

Index of connectors:
