61 13... In-line connectors, 24-/44-pin, Hybrid System MQS/MPQ

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Manufactured by AMP: The following contact types without single conductor seal can be fitted in the connector housings:

MQS (Micro Quadlock System)
MPQ, width 2.8 mm (Micro Power Quadlock)
MPQ, width 5.2 mm (Micro Power Quadlock)

Socket housing:

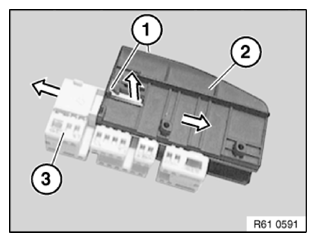

Press locks (1) on protective cap (2) upwards on both sides.

Detach protective cap from contact carrier (3).

NOTE: Detaching the protective cap releases the secondary locks of the socket contacts.

Fig 1: Detaching Protective Cap From Contact Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

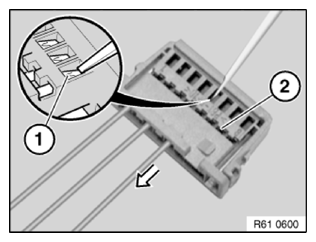

Hold down safety catch (1) of contact bushing in opening of contact carrier with a small screwdriver.

Pull wire with contact bushing in arrow direction as far as secondary lock (2).

Fig 2: Pulling Wire With Contact Bushing

Courtesy of BMW OF NORTH AMERICA, INC.

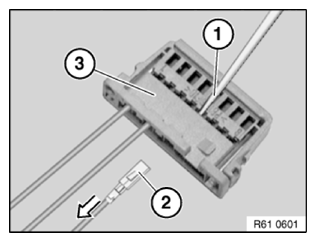

Hold down snap-in hooks in secondary lock (1) again and pull cable with contact bushing (2) completely out of contact carrier (3).

Fig 3: Holding Down Snap-In Hooks In Secondary Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Pin housing:

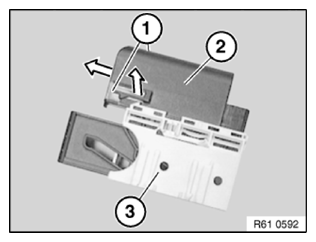

Press locks (1) on protective cap (2) upwards on both sides.

Detach protective cap from housing carrier (3).

NOTE: Detaching the protective cap releases the secondary locks of the pin contacts in the contact carriers.

Fig 4: Pressing Locks On Protective Cap

Courtesy of BMW OF NORTH AMERICA, INC.

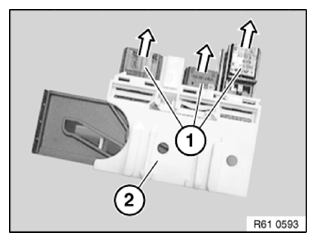

Pull contact carrier (1) out of housing carrier (2).

The pin contacts are pulled out of a contact carrier as described under "Socket housing".

Fig 5: Pulling Contact Carrier Out Of Housing Carrier

Courtesy of BMW OF NORTH AMERICA, INC.
