61 13... Inline plugs, 2-pin, System MPQ 2.8

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

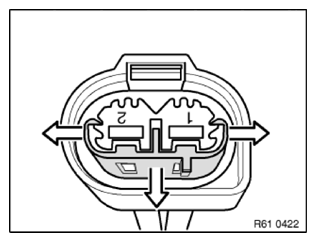

Press catch on outside in arrow direction and remove towards top.

Fig 1: Pressing Catch On Outside
G11774907Courtesy of BMW OF NORTH AMERICA, INC.

Press down snap-in hooks (1) with screwdriver and pull out cable and contact (2) towards rear.

Fig 2: Pressing Down Snap-In Hooks With Screwdriver
G11774908Courtesy of BMW OF NORTH AMERICA, INC.
