61 13... Inline plugs, 4-, 10-pin, System Elo

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

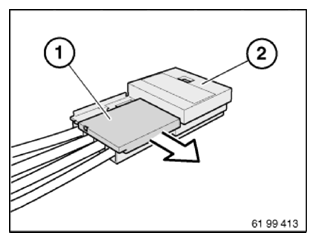

Detach fastener (1) from contact carrier (2).

Fig 1: Detaching Fastener From Contact Carrier
G11774909Courtesy of BMW OF NORTH AMERICA, INC.

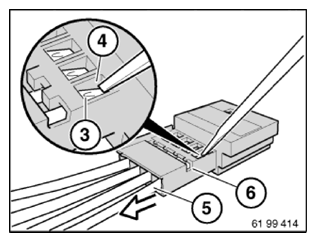

Hold down safety catch (3) of defective contact and pull cable and contact up to secondary lock (6).

Fig 2: Holding Down Safety Catch Of Defective Contact
G11774910Courtesy of BMW OF NORTH AMERICA, INC.

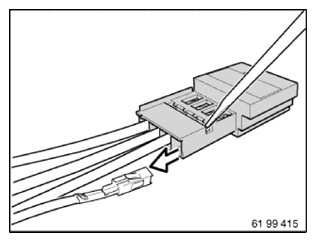

Hold down safety catch once again in secondary lock and pull cable and contact completely out of contact carrier.

Fig 3: Holding Down Safety Catch In Secondary Lock
G11774911Courtesy of BMW OF NORTH AMERICA, INC.
