61 13... In-line plugs, 4-pin, System DFK ELA

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

61 0 316

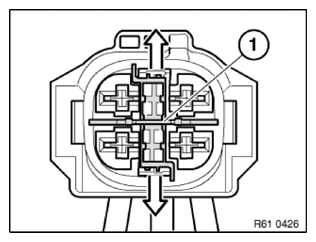

Press safety catch in arrow direction and remove lock (1).

Fig 1: Pressing Safety Catch

Courtesy of BMW OF NORTH AMERICA, INC.

Installation notes:

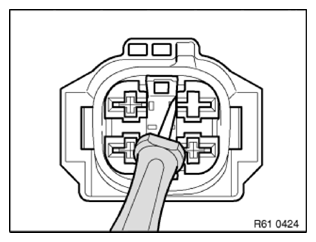

If necessary, side lock must also be unlocked with screwdriver.

Fig 2: Removing Side Lock

Courtesy of BMW OF NORTH AMERICA, INC.

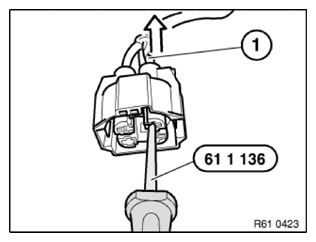

With special tool 61 0 316 (61 1 136), unlock contact and pull out cable with contact (1) towards rear.

Fig 3: Pulling Out Cable With Contact Towards Rear

Courtesy of BMW OF NORTH AMERICA, INC.
