61 13... Socket housings, 5-pin, 8-pin, System MQS/MPQ

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Manufactured by AMP: The following contact types without single conductor seal can be fitted in the connector housings:

MQS (Micro Quadlock System)
MPQ, width 2.8 mm (Micro Power Quadlock)
MPQ, width 5.2 mm (Micro Power Quadlock)

Socket housing, 5-pin (Hybrid System MQS/MPQ):

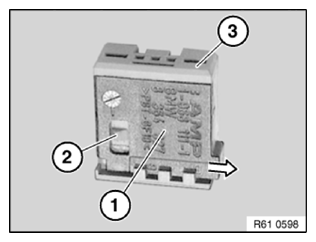

Raise fastener (1) over snap-in lug (2) and detach from contact carrier (3).

Fig 1: Detaching Contact Carrier (5-Pin)

G11774956

Courtesy of BMW OF NORTH AMERICA, INC.

Socket housing, 8-pin (MQS):

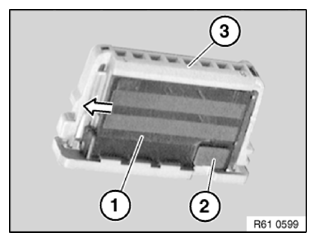

Raise fastener (1) over snap-in lug (2) and detach from contact carrier (3).

Fig 2: Detaching Contact Carrier (8-Pin)

G11774957

Courtesy of BMW OF NORTH AMERICA, INC.

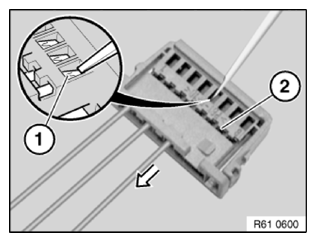

Hold down snap-in hooks (1) of contact and pull cable with contact as far as secondary lock (2).

Fig 3: Pulling Cable With Contact As Far As Secondary Lock

G11774958

Courtesy of BMW OF NORTH AMERICA, INC.

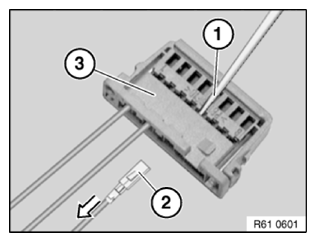

Hold down snap-in hooks in secondary lock (1) again and pull cable with contact (2) completely out of contact carrier (3).

Fig 4: Pulling Cable With Contact Carrier

G11774959

Courtesy of BMW OF NORTH AMERICA, INC.
