61 13... Circular connector, 7-pin, 8-pin, system D2.5

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

61 0 303

Carefully detach rubber grommet (1).

Carefully press back retaining tabs (2) of internal connector (3).

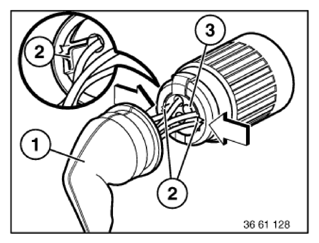

Fig 1: Pressing Back Retaining Tabs Of Internal Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Slide internal connector (3) in arrow direction until retaining tabs (2) lock into groove (4).

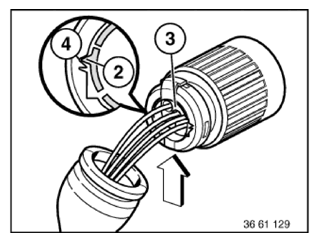

Fig 2: Sliding Internal Connector Until Retaining Tabs

Courtesy of BMW OF NORTH AMERICA, INC.

Use special tool 61 0 303 (61 1 132) to press back safety catch (5) of corresponding contact and pull out cable with contact.

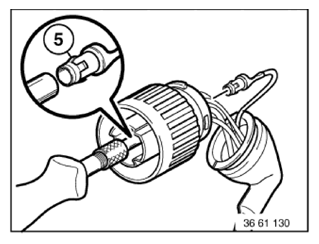

Fig 3: Pressing Back Safety Catch Of Corresponding Contact

Courtesy of BMW OF NORTH AMERICA, INC.
