61 13... Circular connector, 20-pin, system D2.5

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

61 0 303

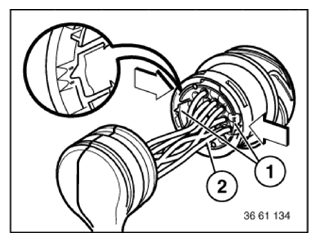

Carefully press back retaining tabs (1) of internal connector (2).

Fig 1: Pressing Back Retaining Tabs Of Internal Connector

Courtesy of BMW OF NORTH AMERICA, INC.

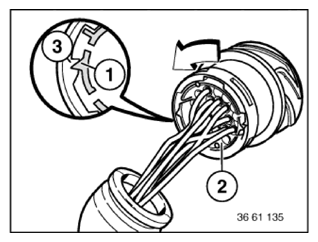

Turn internal connector (2) until retaining lugs (1) snap into release groove (3).

Fig 2: Turning Internal Connector Until Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.

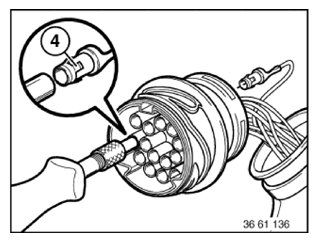

With special tool 61 0 303 press down safety catch (4) of corresponding contact and pull out cable.

Fig 3: Pressing Down Safety Catch Of Corresponding Contact

Courtesy of BMW OF NORTH AMERICA, INC.
