61 13... Inline connectors, 15-pin, System D2.5

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

61 0 303

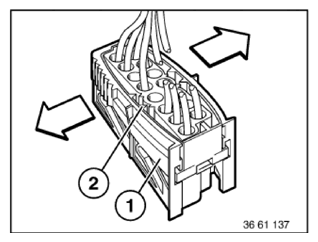

Carefully pull external connector (1) in area of retaining lugs (2) apart slightly.

Fig 1: Pulling External Connector In Area Of Retaining Lugs Apart

Courtesy of BMW OF NORTH AMERICA, INC.

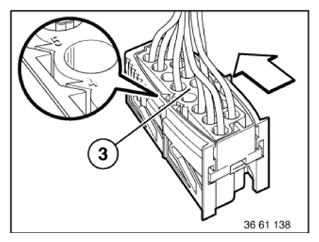

Pull internal connector (3) up to stop in arrow direction.

Fig 2: Pulling Internal Connector To Stop

Courtesy of BMW OF NORTH AMERICA, INC.

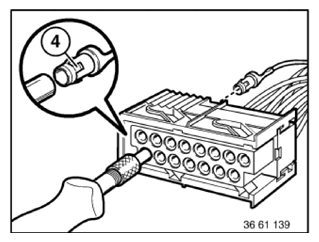

With special tool 61 0 303 press back snap-in hooks (4) of corresponding contact and pull out cable with contact.

Fig 3: Pressing Back Snap-In Hooks Of Corresponding Contact

Courtesy of BMW OF NORTH AMERICA, INC.
