61 13... In-line plugs, 6- to 50-pin, System Elo

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

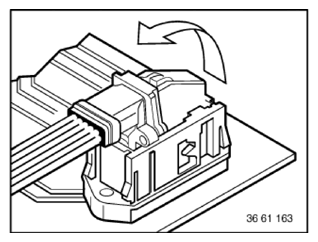

Open lock.

Fig 1: Opening Lock

G11774919

Courtesy of BMW OF NORTH AMERICA, INC.

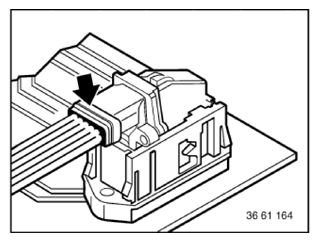

Detach cable tie.

Installation note:

Cable tie must be reinstalled.

Fig 2: Locating Cable Tie

G11774920

Courtesy of BMW OF NORTH AMERICA, INC.

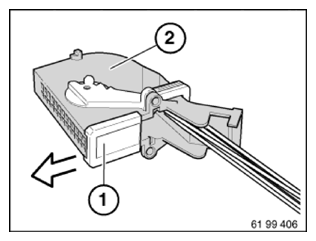

Detach catch (1) from connector housing (2).

Fig 3: Detaching Catch From Connector Housing

G11774921

Courtesy of BMW OF NORTH AMERICA, INC.

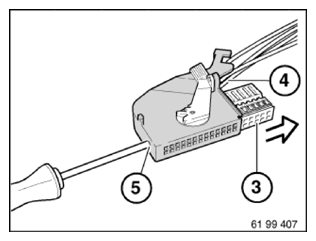

Press out contact carrier (3) with wiring harness (4) through opening (5).

Fig 4: Pressing Out Contact Carrier With Wiring Harness Through Opening

G11774922

Courtesy of BMW OF NORTH AMERICA, INC.

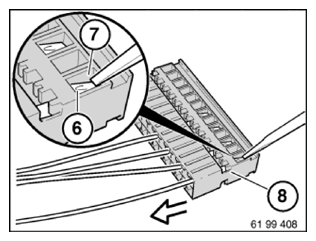

Hold down safety catch (6) of defective contact and pull cable and contact up to secondary lock (8).

Fig 5: Holding Down Safety Catch Of Defective Contact

G11774923

Courtesy of BMW OF NORTH AMERICA, INC.

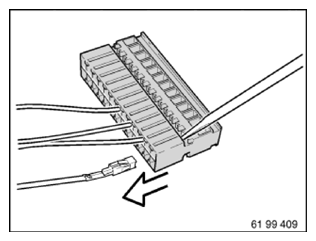

Hold down safety catch once again in secondary lock (8) and pull cable and contact completely out of contact carrier.

Fig 6: Holding Down Safety Catch In Secondary Lock

G11774924

Courtesy of BMW OF NORTH AMERICA, INC.
