61 13... In-line plugs, 2-pin, System MDK 3 plus 2.8

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

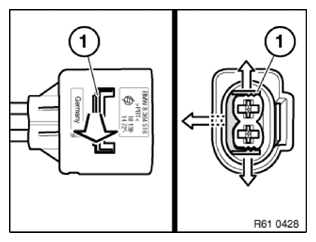

Unlock lock (1) on outside at safety catch and slide out lock (1) to side.

Fig 1: Sliding Out Lock To Side
G11774905Courtesy of BMW OF NORTH AMERICA, INC.

With special tool 61 0 316 (61 1 136), unlock contact and pull out cable with contact (1) towards rear.

Fig 2: Pulling Out Cable With Contact Towards Rear
G11774906Courtesy of BMW OF NORTH AMERICA, INC.
