61 13... Circular plugs, 4-, 7-, 10- 12-, 25-pin, System D1.5/D2.5

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

61 0 303

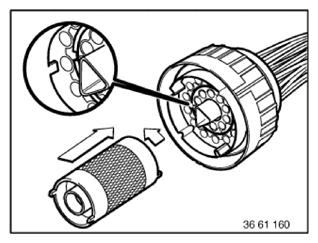

Insert special tool with suitable connection side in connector and twist approx. 3° counter-clockwise.

Fig 1: Inserting Special Tool With Suitable Connection Side In Connector

Courtesy of BMW OF NORTH AMERICA, INC.

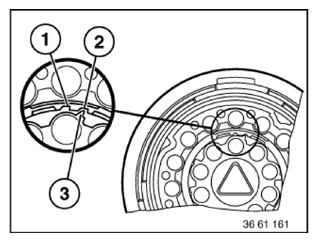

The connector is locked down if retaining lug (3) is located in locking groove (2).

Unlocking groove
Locking groove
Retaining lug

Fig 2: Locating Retaining Lug In Locking Groove

Courtesy of BMW OF NORTH AMERICA, INC.

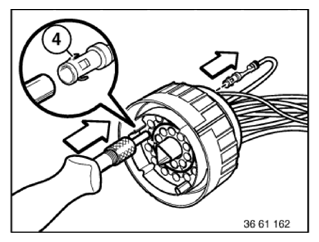

With special tool 61 0 303 press back snap-in hooks (4) of corresponding contact and pull out cable with contact.

Fig 3: Pressing Back Snap-In Hooks Of Corresponding Contact

Courtesy of BMW OF NORTH AMERICA, INC.
