61 13... Inline plugs, 8-, 12-pin, System D2.5

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

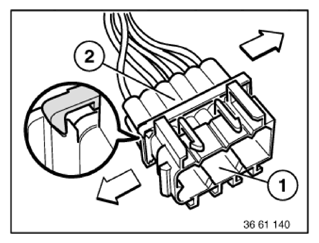

Shift upper section of connector (1) and lower section of connector (2) against each other in arrow direction.

Fig 1: Removing Shift Upper Section Of Connector And Lower Section Of Connector
G11774917Courtesy of BMW OF NORTH AMERICA, INC.

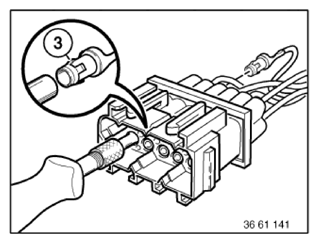

With special tool 61 0 303 , press down safety catch (3) of corresponding contact and pull out cable with contact.

Fig 2: Pressing Down Safety Catch Of Corresponding Contact
G11774918Courtesy of BMW OF NORTH AMERICA, INC.
