61 13... Control unit plugs, 25-, 35-, 55-, 83-, 88-pin

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Unscrew the screws (1).

Lever out pin sensor (2) with gasket (3) in arrow direction.

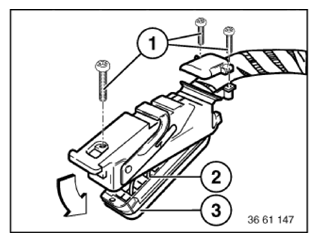

Fig 1: Removing Screws

G11774844

Courtesy of BMW OF NORTH AMERICA, INC.

Remove gasket (3).

Pull out housing lock (4) in arrow direction and unlock.

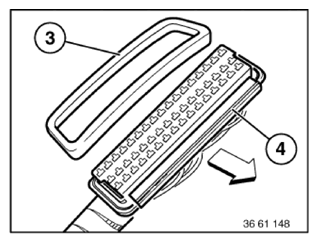

Fig 2: Pulling Out Housing Lock

G11774845

Courtesy of BMW OF NORTH AMERICA, INC.

Press down snap-in hooks (5) of corresponding contact and pull out cable with contact.

Special tool 61 0 312 (61 1 134) for mini flat spring contacts.

Special tool 61 0 314 (61 1 135) for mini flat spring contacts.

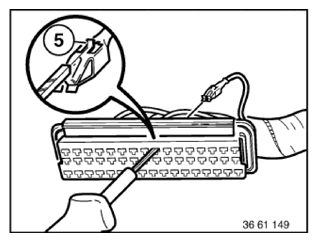

Fig 3: Pressing Down Snap-In Hooks Of Corresponding Contact

G11774846

Courtesy of BMW OF NORTH AMERICA, INC.

Special tool 61 0 315 (61 1 151) for double flat spring contacts (dual snap-in hooks).

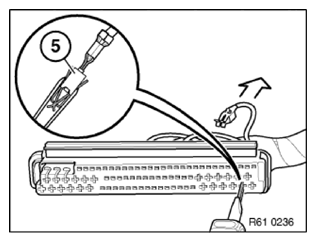

Fig 4: Double Flat Spring Contacts (Dual Snap-In Hooks)

G11774847

Courtesy of BMW OF NORTH AMERICA, INC.

Special tool 61 0 323 (61 1 152) for double flat spring contacts (special snap-in hooks).

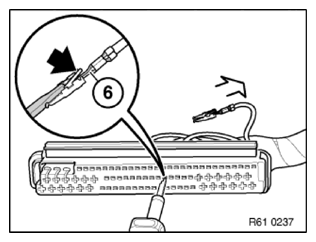

Fig 5: Double Flat Spring Contacts (Special Snap-In Hooks)

G11774848

Courtesy of BMW OF NORTH AMERICA, INC.
