61 13... Connector housing, LCC contact (load current contact)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

61 0 317

Socket housing:

Press lock (1) with suitable tool (2) in arrow direction out of socket housing (3).

Fig 1: Pressing Lock With Suitable Tool Of Socket Housing

G11774839

Courtesy of BMW OF NORTH AMERICA, INC.

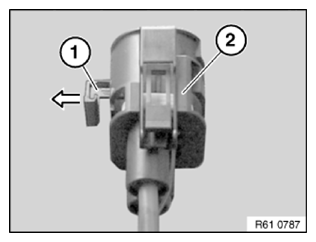

Pull lock (1) out of socket housing (2).

Fig 2: Pulling Lock Out Of Socket Housing

G11774840

Courtesy of BMW OF NORTH AMERICA, INC.

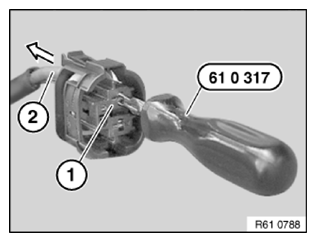

Insert special tool 61 0 317 into socket housing (1) and pull out wiring with LCC contact (2) in arrow direction.

Fig 3: Inserting Special Tool (61 0 317) Into Socket Housing

G11774841

Courtesy of BMW OF NORTH AMERICA, INC.

Pin housing:

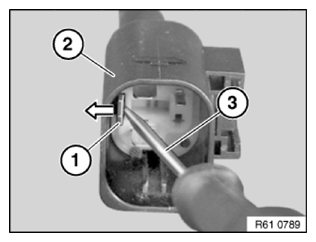

Unlock locking slide (1) of pin housing (2) with suitable tool (3) in arrow direction.

Fig 4: Removing Locking Slide Of Pin Housing

G11774842

Courtesy of BMW OF NORTH AMERICA, INC.

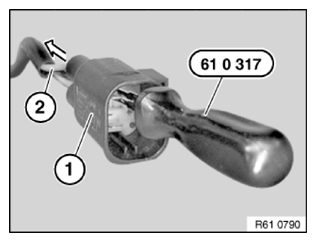

Insert special tool 61 0 317 into pin housing (1) and pull out wiring with LCC contact (2) in arrow direction.

Fig 5: Inserting Special Tool (61 0 317) Into Pin Housing

G11774843

Courtesy of BMW OF NORTH AMERICA, INC.
