61 13... Inline plugs, 3-, 6-pin, System Elo-Power 2.8

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

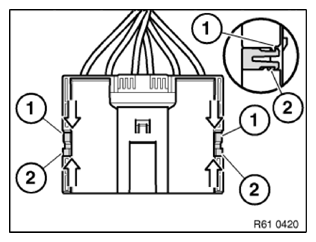

Press locking hooks (1) in arrow direction and disengage. Then unlock locking hooks (2) and remove locking mechanism.

Fig 1: Pressing Locking Hooks
G11774915Courtesy of BMW OF NORTH AMERICA, INC.

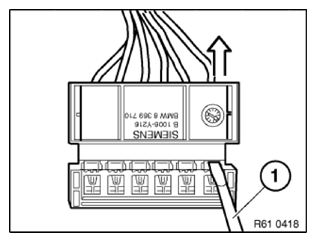

Press down safety catch with screwdriver (1) and pull out cable with contact towards rear.

Fig 2: Pressing Down Safety Catch With Screwdriver
G11774916Courtesy of BMW OF NORTH AMERICA, INC.
