61 13... In-line connectors, 30-pin, Hybrid System MQS/MPQ

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Manufactured by AMP: The following contact types without single conductor seal can be fitted in the connector housings:

MQS (Micro Quadlock System)
MPQ, width 2.8 mm (Micro Power Quadlock)
MPQ, width 5.2 mm (Micro Power Quadlock)

Socket housing:

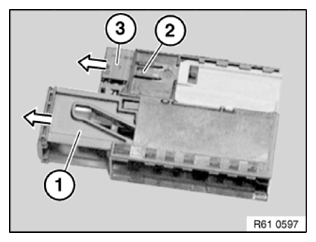

Raise lock (1) on housing (2).

Push contact carrier (3) out of housing (2).

NOTE: Pushing out the contact carrier releases the secondary locks of the socket contacts.

Fig 1: Pushing Contact Carrier Out Of Housing

Courtesy of BMW OF NORTH AMERICA, INC.

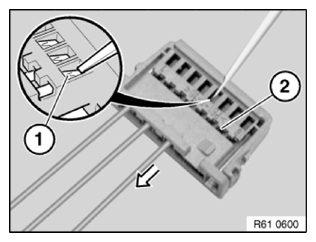

Hold down snap-in hooks (1) of contact bushing in opening of contact carrier with a small screwdriver.

Pull wire with contact bushing in arrow direction as far as secondary lock (2).

Fig 2: Holding Down Snap-In Hooks Of Contact Bushing

Courtesy of BMW OF NORTH AMERICA, INC.

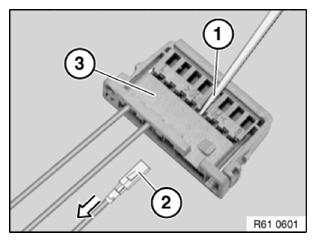

Hold down snap-in hooks in secondary lock (1) again and pull cable with contact bushing (2) completely out of contact carrier (3).

Fig 3: Holding Down Snap-In Hooks In Secondary Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Pin housing:

Contacts 1... 13 and 19... 27:

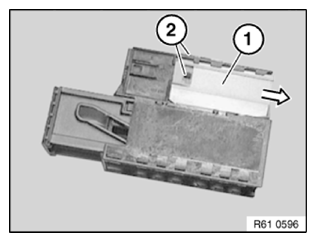

Raise locking slide (1) on both sides (2) of housing and detach.

NOTE: Detaching the locking slide releases the secondary locks of the pin contacts.

Fig 4: Raising Locking Slide On Both Sides Of Housing

Courtesy of BMW OF NORTH AMERICA, INC.

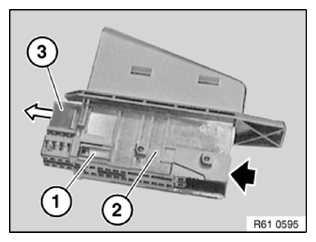

Contacts 14... 18 and 28... 30:

Pull slide (1) outwards completely.

Raise lock (2) on housing.

Pull contact carrier (3) out of housing.

NOTE: Pulling out the contact carrier releases the secondary locks of the pin contacts.

Fig 5: Pulling Contact Carrier Out Of Housing

Courtesy of BMW OF NORTH AMERICA, INC.

The pin contacts are pulled out of a contact carrier as described under "Socket housing".
