61 13... Socket housing 42-, 43-, 46-pin, Hybrid System MQS/MPQ

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

61 0 312

Manufactured by AMP: The following bushing housings without single conductor seal can be fitted in the socket housings:

MQS (Micro Quadlock System)
MPQ, width 2.8 mm (Micro Power Quadlock)
MPQ, width 5.2 mm (Micro Power Quadlock)

Open secondary locks (1) on socket housing.

Press back safety catch of MQS contacts (2) with special tool 61 0 312 61 1 134 and pull out cable with contact.

Press back safety catch of MPQ contacts (3) with screwdriver and pull out cable with contact.

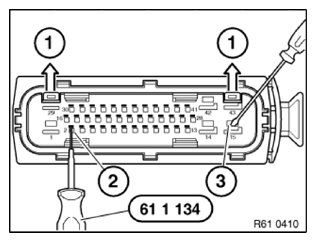

Fig 1: Pressing Back Safety Catch Of MQS Contacts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Bend open safety catch of contacts gently before inserting into connector housing.

For installation of contacts, observe chamber numbers on reverse side of socket housing.

Fig 2: Chamber Numbers On Reverse Side Of Socket Housing

Courtesy of BMW OF NORTH AMERICA, INC.
