61 13... Circular connector, 13-pin, system D2.5

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

61 0 303

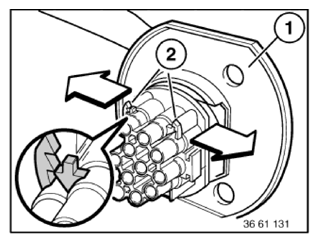

Detach rubber grommet (1).

Carefully pull out locking mechanism (2) in arrow direction.

Fig 1: Pulling Out Locking Mechanism

Courtesy of BMW OF NORTH AMERICA, INC.

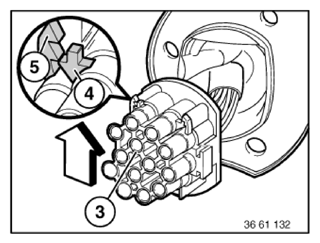

Shift lower section of connector (3) in arrow direction until retaining lugs (4) snap into release groove (5).

Fig 2: Releasing Shift Lower Section Of Connector

Courtesy of BMW OF NORTH AMERICA, INC.

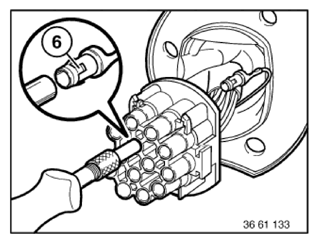

With special tool 61 0 303 , press down retaining lugs (6) of corresponding contact and pull out cable.

Fig 3: Pressing Down Retaining Lugs Of Corresponding Contact

Courtesy of BMW OF NORTH AMERICA, INC.
