Remove/Install Dashboard - AR68.10-S-1000EI
Model 447.6/7, 448.7
With Code XM7 (MOPF II)
Shown On model 447.7## 2#
Shown On model 447.7## 2#
Shown On model 447.7## 2#
Shown On model 447.7## 2#
Shown On model 447.7## 2#
Shown On model 447.7## 2#
Shown On model 447.7## 2# With Code JK8 (driver camera)
| Notice | General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment | Model 447.6/7 with engine 780 | AH00.00-Z-0300-01A |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | Notes on carrying out repair work in the vehicle interior | AH68.00-D-0001-01KOS | |
| Remove/install | |||
| 1 | Remove front side air vent. | AR83.10-S-4741EH | |
| 2 | Remove front center air vent. | AR83.10-S-4742EH | |
| 3 | Remove instrument cluster. | AR54.30-S-6015EH | |
| 4 | Remove radio display. | AR82.60-S-7722EI | |
| 5 | Remove steering column tube. | AR54.25-S-2802E | |
| 6 | Remove front passenger airbag. | AR91.60-S-0680EF | |
| 7 | Remove rotary light switch. | AR54.25-S-3250E | |
| 8 | Remove trim from the A-pillar. | AR68.30-S-4050E | |
| 9 | Remove covers over air vents. | Remove/install air nozzle cover on passenger side | AR68.10-S-1090E |
| Removing, installing cover above air nozzle on driver's side | AR68.10-S-1080E | ||
| 10 | Remove the speaker in the instrument panel (1). | AR82.62-S-7833E | |
| 11 | Remove front air conditioning control panel. | Model 447.6/7 with code HH4 (THERMOTRONIC automatic climate control) or with code HH9 (semi-automatically controlled air conditioning system, TEMPMATIC), model 448.7 | AR83.30-S-6631EH |
| 12 | Remove glove compartment housing. | Model 447.6/7, 448.7 with code F66 (glove compartment, lockable) | AR68.10-S-1400E |
| 13 | Remove lower center trim for instrument panel (1). | AR68.10-S-1498EH | |
| 14 | Remove center console. | Model 447.6/7 with code F1O (center console with stowage compartment and cup holder, center version) or with code FF1 (center console with stowage compartment) or with code FF2 (center console with 1 device installation frame) or with code FG0 (luxury center console with roller blind) or with code FG6 (center console with refrigerator box), Model 448.7 with code FF1 (center console with stowage compartment) or with code FG0 (luxury center console with roller blind) Model 447.6/7 with code F1O (center console with stowage compartment and cup holder, center version) |
AR68.20-S-2000EH |
| Models 447.6/7, 448.7 with code FG0 (luxury center console with roller blind) | AR68.20-S-2000EA | ||
| Model 447.6/7 with code FF1 (center console with stowage compartment) or with code FF2 (center console with 1 device installation frame), model 448.7 with code FF1 (center console with stowage compartment) | AR68.20-S-2000E | ||

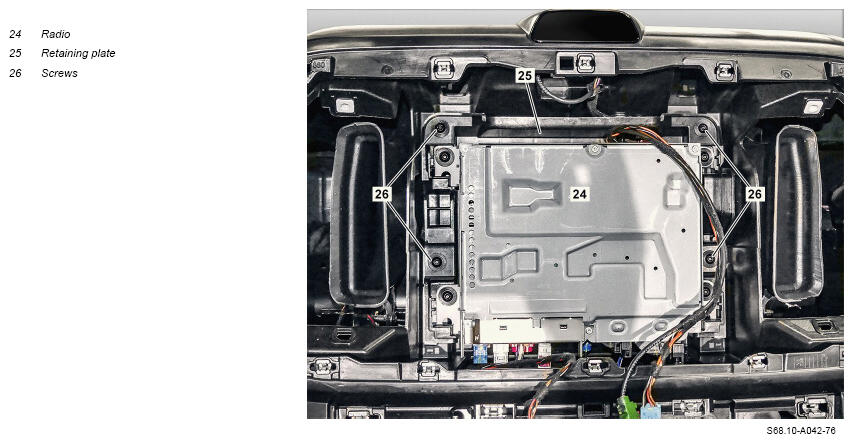

| 15 | Disassemble radio (24) with retaining plate (25). | ||
| 16 | Remove radio (24) with retaining plate (25). | AR82.60-S-7502EH | |

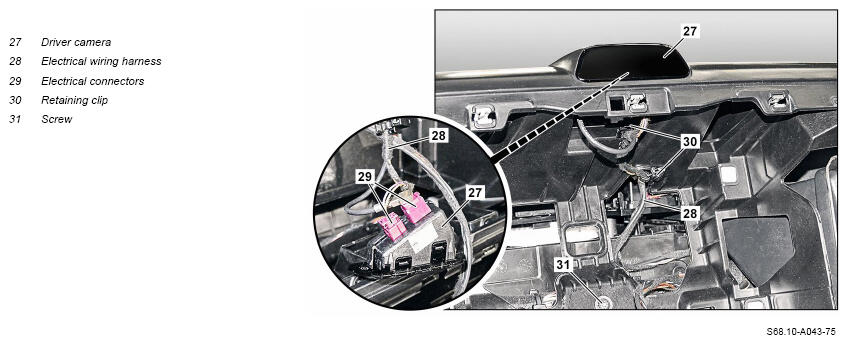

| 17 | Remove the electrical wiring harness (28). | Models 447.6/7, 448.7 with code JK8 (driver camera) |
|
If damage is present: ↓ Replace damaged retaining clips (30). |
Fig 1 | ||
| 18 | Remove driver camera (27). | Models 447.6/7, 448.7 with code JK8 (driver camera) |
|

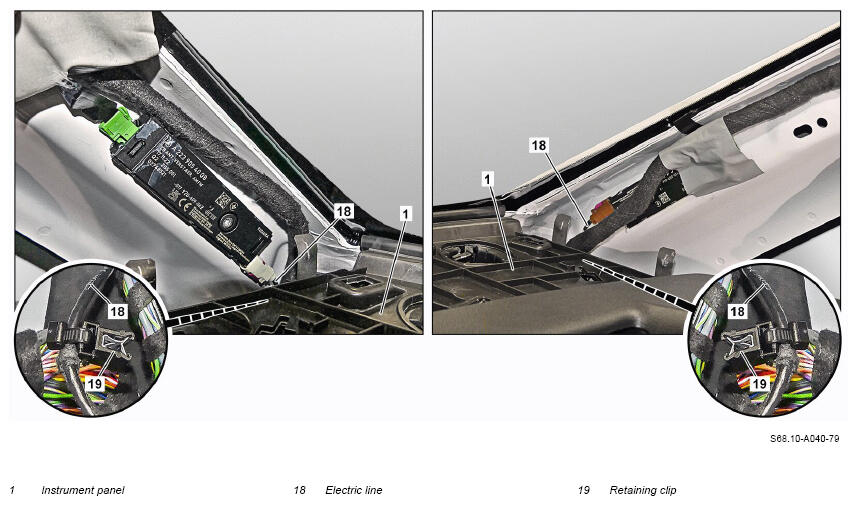

| 19 | Remove electrical wiring harness (5). | ||
If damage is present: ↓ Replace retaining clip (6). |
Fig 1 | ||

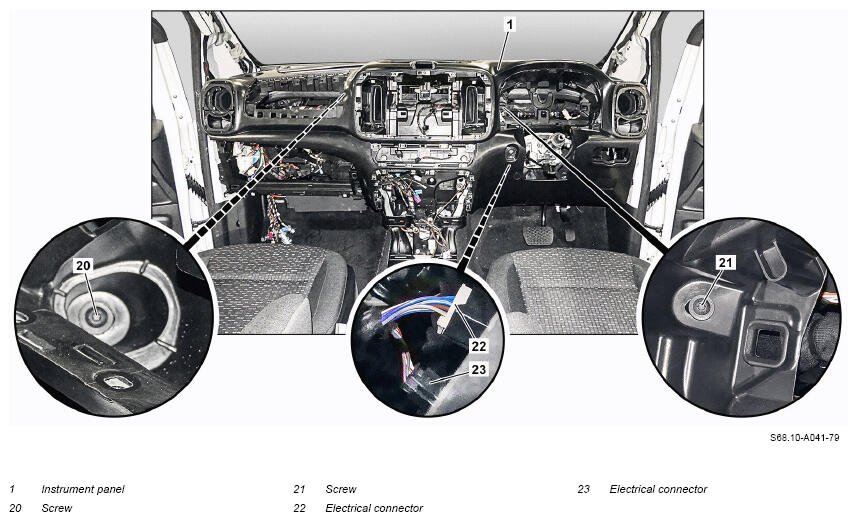

| 20 | Release and disconnect electrical connector (22) of the start/stop button. | ||
| 21 | Release and disconnect electrical connector (23) of the vehicle interior temperature sensor. | Model 447.6/7, 448.7 with code HH4 (THERMOTRONIC automatic climate control) or with code HH9 (semi-automatically controlled air conditioning system, TEMPMATIC) | |

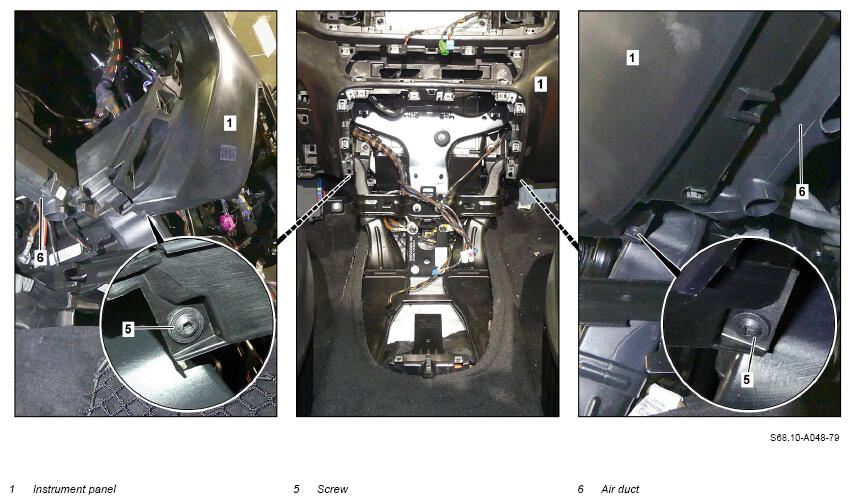

| 22 | Unhook the air ducts (6) in the footwell on the instrument panel (1). | ||

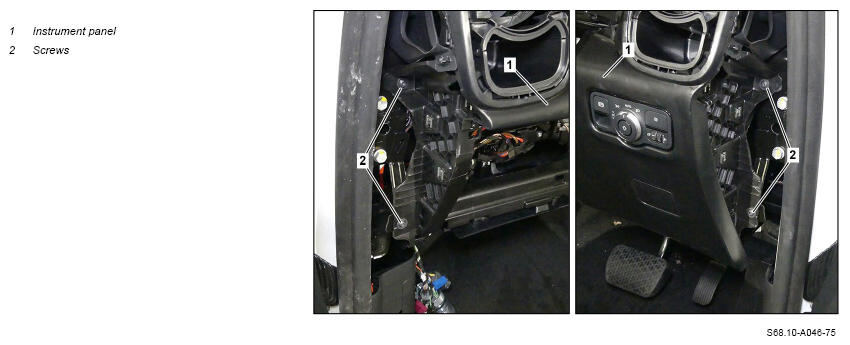

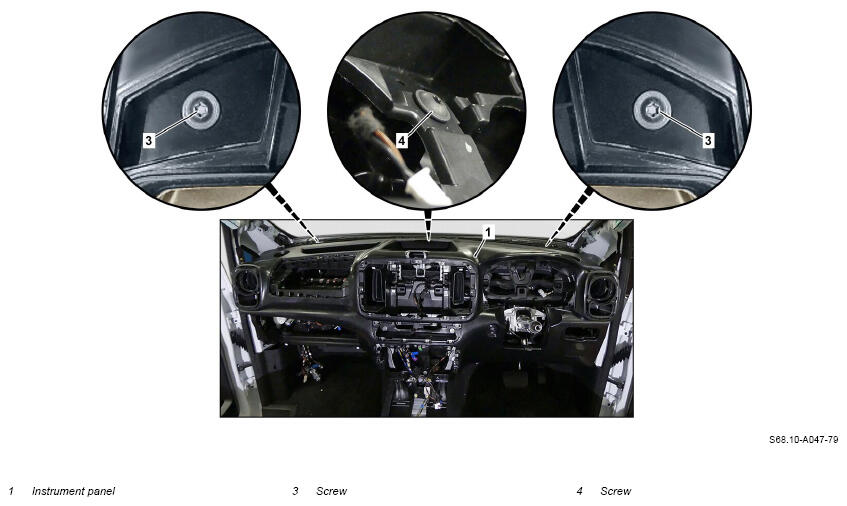

| 23 | Unscrew screws (2, 3, 4, 5, 12, 20, 21, 31). | ||
| 24 | Remove instrument panel (1). | Aid of helper required. |
|
| 25 | Remove instrument panel (1). | Aid of helper required. |
Fig 1 |
| 26 | Change vehicle interior temperature sensor. | When replacing instrument panel (1). Model 447.6/7 with code HH4 (THERMOTRONIC automatic climate control) or with code HH9 (semi-automatically controlled air conditioning system, TEMPMATIC), Model 448.7 |
AR83.30-S-8091E |
| 27 | Change start/stop button. | When replacing instrument panel (1). Model 447.6/7, 448.7 |
AR80.57-S-4801EH |
| 28 | Install in the reverse order. |
