Remove/Install Front Center Air Vent - AR83.10-S-4742EH

Model 447, 448 With Code XM7 (MOPF II)

Courtesy of MERCEDES-BENZ USA

Shown On Model 447.8

Courtesy of MERCEDES-BENZ USA

Shown On Model 447.7

Shown On Model 447.7 on left center air vent (1)

Courtesy of MERCEDES-BENZ USA

Notice	General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment	Model 447 with engine 780	AH00.00-Z-0300-01A
Notice	Notes on carrying out repair work in the vehicle interior		AH68.00-D-0001-01KOS
	Remove/install

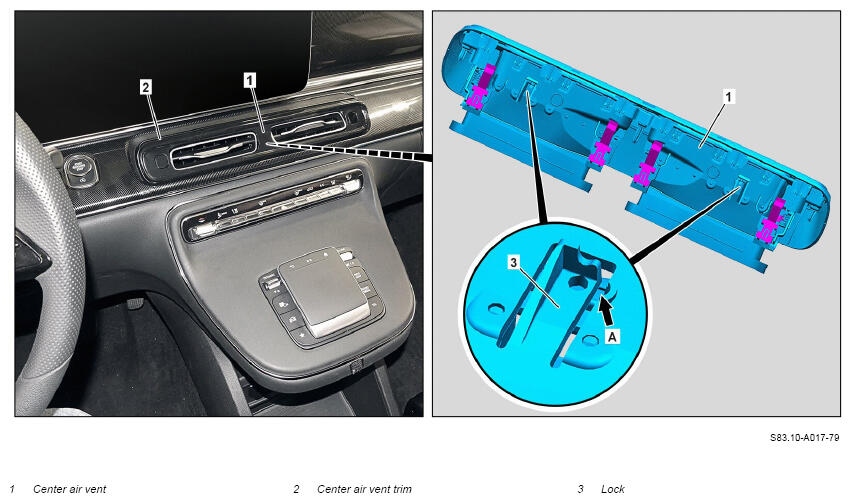

1	Remove center air vent trim (2).	Model 447.8, 448.8 Check catch tabs of center air vent trim (2) for damage. Long wedge If damage is present, ↓ Replace center air vent trim (2).	Fig 1

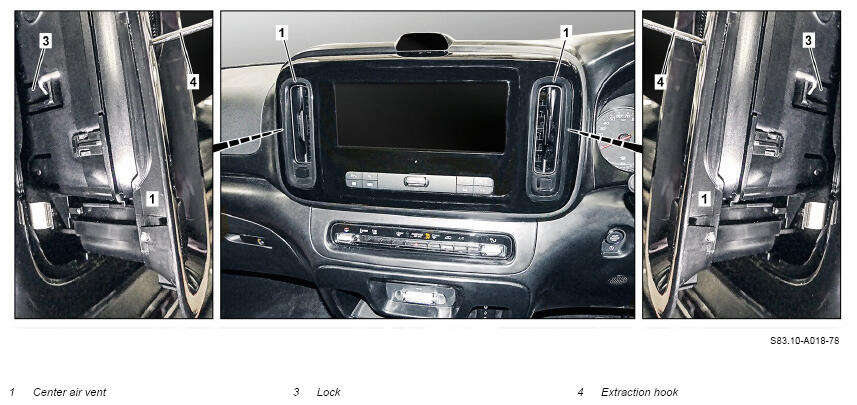

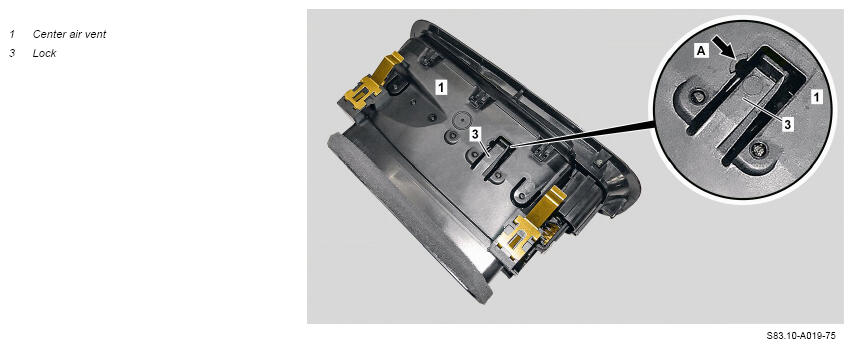

2	Position extraction hooks (4) on center air vents (1).	Model 447.8, 448.8 To do so, guide extraction hooks (4) through cutouts (arrow A) and position on locks (3). Two extraction hooks (4) are required. Model 447.6/7, 448.7 To do so, insert an extraction hook (4), as shown, through cutout (arrow A) and position on lock (3).
		Extraction hook	Fig 2
3	Remove center air vent (1).	To do so, turn extraction hooks (4) through 90° and pull out side air vent (1). Turning the extraction hook (4) unlocks the lock (3).
		Extraction hook	Fig 2
4	Install in the reverse order.

Fig 1: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Extraction Hook (140 589 02 33 00)

Courtesy of MERCEDES-BENZ USA
