Remove/Install Front Side Air Vent - AR83.10-S-4741EH

Model 447, 448 With Code XM7 (MOPF II)

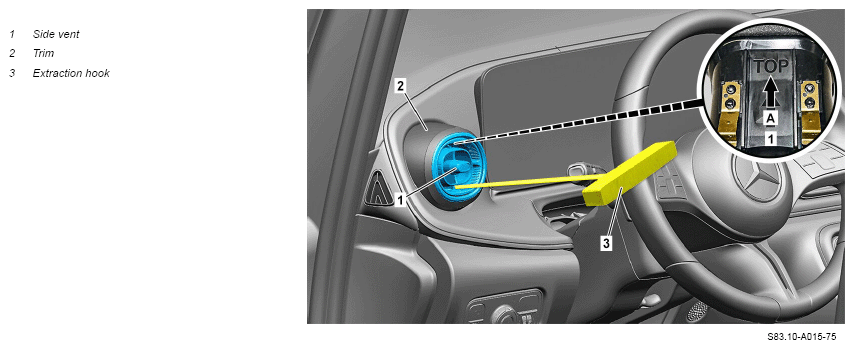

Shown On Model 447.8 on left side of vehicle

Courtesy of MERCEDES-BENZ USA

Shown On Model 447.8 on left side of vehicle

Courtesy of MERCEDES-BENZ USA

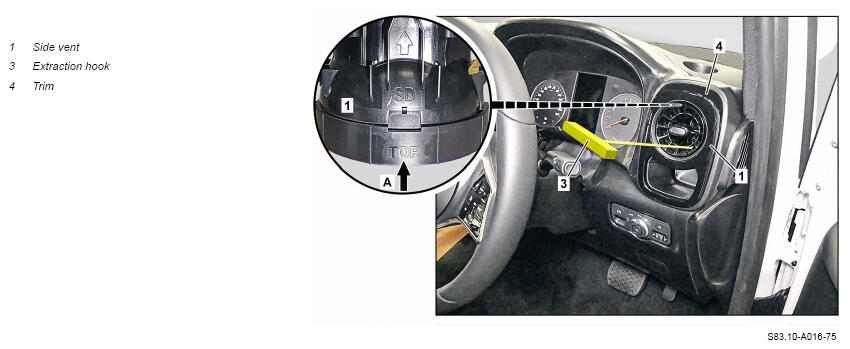

Shown On Model 447.7## 2# on right side of vehicle

Courtesy of MERCEDES-BENZ USA

Notice	General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment	Model 447 with engine 780	AH00.00-Z-0300-01A
Notice	Notes on carrying out repair work in the vehicle interior		AH68.00-D-0001-01KOS
	Remove/install
1	Remove respective trim (2, 4) of side air vent (1) to be removed.		AR68.10-S-1596EH

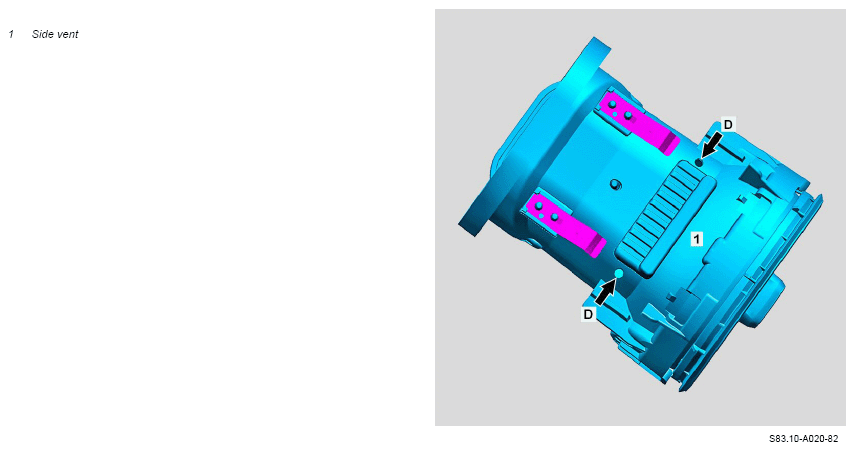

2	Remove respective side air vent (1).	Model 447.8, 448.8 To do so, insert extraction hook (3) in left or right cutout (arrows D) on side air vent (1) and pull out side air vent (1). Model 447.6/7, 448.7 To do so, insert extraction hook (3), as shown, at side air vent (1) and pull out side air vent (1). Make sure that "TOP" marking (arrow A) on side air vent (1) points upward. Make sure that the side air vent (1) is seated correctly.
		Extraction hook	Fig 1
3	Install in the reverse order.

Fig 1: Identifying Extraction Hook (140 589 02 33 00)

Courtesy of MERCEDES-BENZ USA
