Remove/Install Glove Compartment - AR68.10-S-1400E

Model 447, 448

With Code F66 (Glove compartment, lockable)

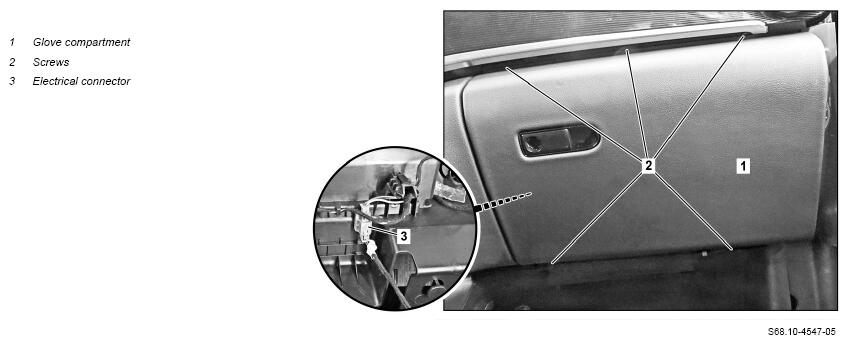

Shown On model 447.8 Except Code XM7 (Facelift II)

Courtesy of MERCEDES-BENZ USA

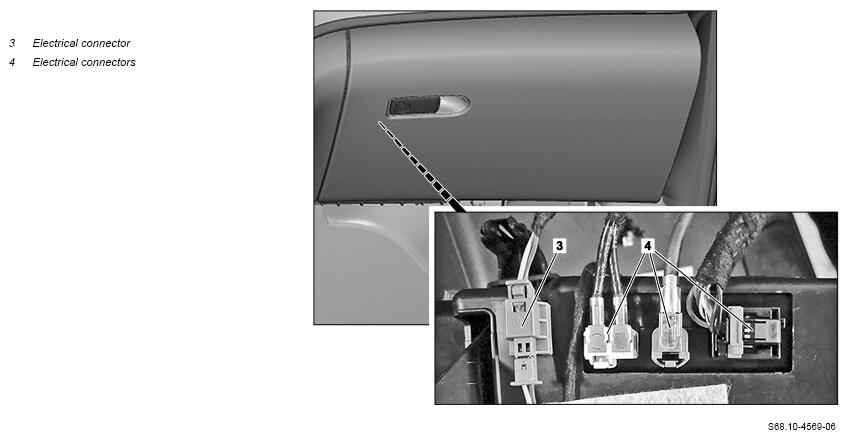

Shown On model 447.6 With Code E1N (Becker MAP PILOT) Except Code XM7 (facelift II)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

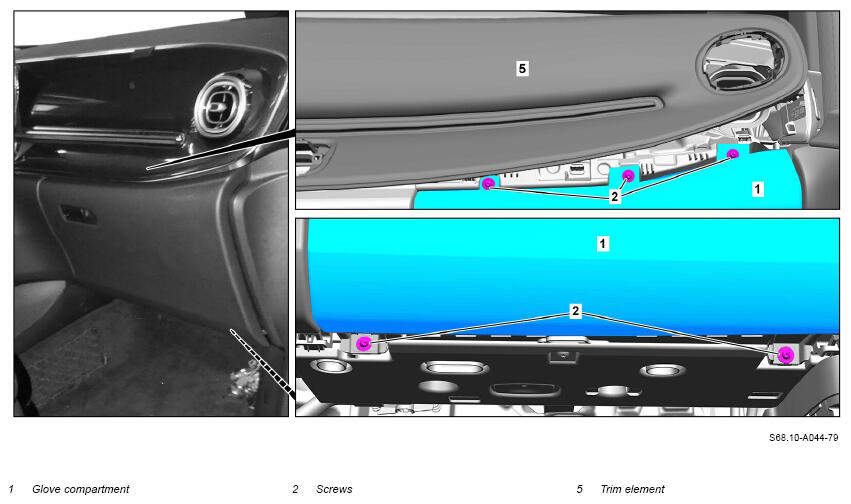

Shown On model 447.8 With Code XM7 (Facelift II)

Notice	General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment	Model 447 with engine 780	AH00.00-Z-0300-01A
Notice	Notes on carrying out repair work in the vehicle interior		AH68.00-D-0001-01KOS
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove right side trim from instrument panel.		AR68.10-S-1503E
2.1	Remove right trim element on instrument panel until screws (2) are accessible.	Model 447.8, 448.8 except code XM7 (Facelift II) Do not disconnect electrical connectors.	AR68.10-S-1180E
2.2	Remove trim element (5) until screws (2) are accessible.	Model 447.8, 448.8 with code XM7 (Facelift II) Do not remove trim element (5) completely.	AR68.10-S-1185EH
3	Remove screws (2).
4	Loosen glove compartment (1) until electrical connector (3) is accessible.
5	Release and disconnect electrical connectors (4).	Model 447.6/7 with code E1N (Becker® MAP PILOT)
6	Remove glove compartment (1).	To do so, release and disconnect electrical connector (3).
7	Transfer detachable parts on glove compartment (1).	When replacing glove compartment (1).
8	Install in the reverse order.
	Check
9	Check glove compartment illumination for proper function (1).
10	Check navigation control unit for proper function.	Model 447.6/7 with code E1N (Becker® MAP PILOT)
